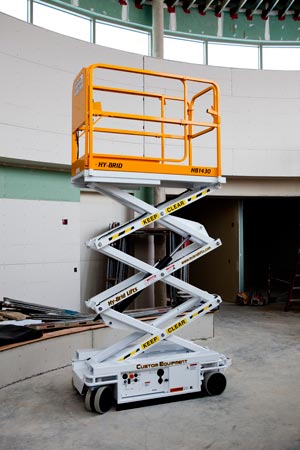

HB-1430

Electric Scissor Lift

Hy-Brid Lifts self-propelled series have high lifting capacities, low step-in heights and a lightweight design, making them the ideal choice for a variety of applications.

  • HB-1430
  • Hy-Brid HB-1430
  • HB-1430 HB-1030 General Safety

Key Features

  • Working height up to 20 ft
  • Weighs only 1650 lbs
  • Weight allows machine to go on delicate flooring
  • Lifts 670 lbs
  • Slide-out deck extension, with slip-resistant surface
  • Non-marking tires
  • 1-year parts and labor warranty
  • 5-year structural warranty

Standard Features

  • Proportional controls
  • Full-Swing entrance door
  • Tilt alarm
  • Hour meter

Options

  • Power to the Platform
Specifications
Maximum Machine Load180 psf8.6 kPa
Maximum Wheel Load113.6 psi783.2 kPa
Minimum Machine Load125.3 psf6.21 kPa
Minimum Wheel Load80.9 psi557.8 kPa
Ground Clearance Lowered3 in7.6 cm
Ground Clearance Raised0.4 in1.0 cm
Platform Height Max (indoors)14 ft4.3 m
Platform Height Min25.4 in0.64 m
Working Height (indoors)20 ft6.1 m
Overall Length69.5 in1.76 m
Overall Width30 in0.76 m
Platform Extension30 in0.76 m
Platform Length60 in1.52 m
Platform Width25 in0.64 m
Stowed Height70 in1.78 m
Extension Capacity250 lb113.4 kg
Inside Turning Radius21 in0.53 m
Lift Speed Up/Down15/22 sec15/22 sec
Platform Capacity670 lb304 kg
Rated Occupancy2 persons2 persons
Weight1645 lb746 kg
