ANSI Standard A92.20

Design Changes

How Do You Know Your Hy-Brid Lift is A92.20 Compliant?

The quickest way to tell if a Hy-Brid Lift is ANSI A92.20 compliant is by the machine's color. If the lift has a gold platform and rails, light gray scissors, and a gold base, it's A92.0 compliant. If the lift has a gold platform and rails, white scissors, and a white base, it's probably not compliant to the new standard.

The decision to change our machines' colors to designate A92.20-compliant lifts came from conversations with our customers who were looking for a quick way to identify A92.20-compliant machines in their fleet.

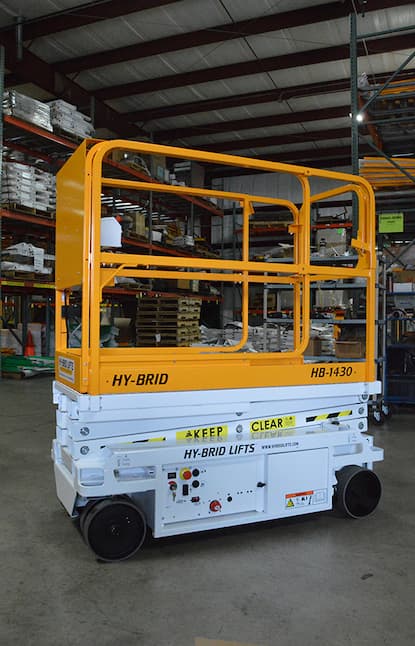

Hy-Brid Lifts HB-1430 lift

A pre-A92.20 HB-1430.

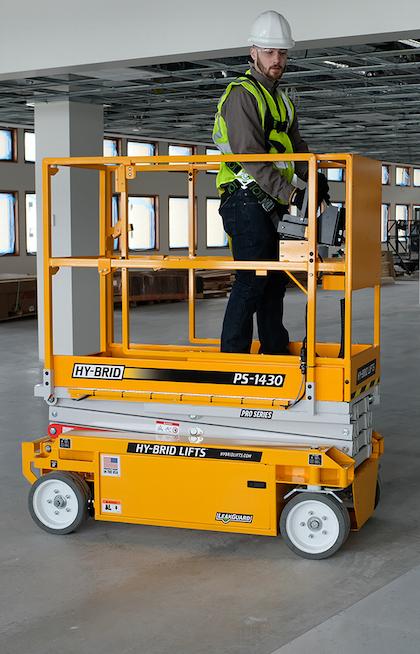

ANSI-compliant Hy-Brid Lifts PS-1430 model

An A92.20-compliant PS-1430.

Rail Height

4.6.3.1 Protection shall be provided on all sides of each work platform that is intended to prevent the fall of persons and materials. The protection shall be securely fastened to the work platform and shall, at a minimum, consist of guardrails at least 43.3 in (1.1 m) high, toeguards at least .33 ft (0.1 m) high, and intermediate guardrails not further than 1.80 ft (0.55 m) from either the guardrails or the toeguards.

What's Changing?

  • Hy-Brid Lifts have always been manufactured with taller rails. As a result, there will only be a 0.5 in change in rail height on most models.
  • All Hy-Brid Lifts fit through standard doorways in the stowed position without the need for folding rails, including the all new PS-1930.
  • The updated rail system is interchangeable between the Pro Series and Zero-Turn Series

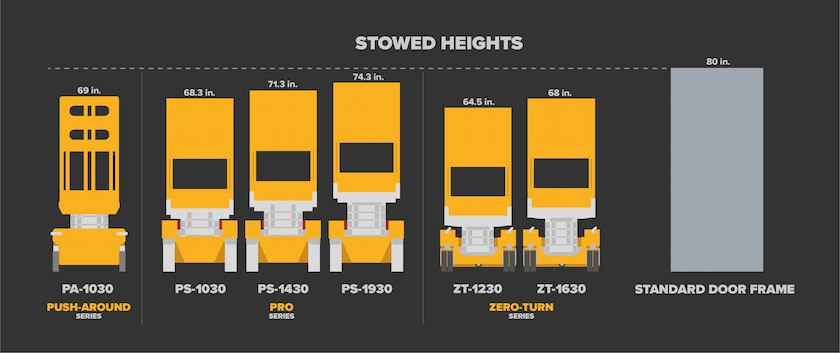

ANSI standards updated rail heights. All Hy-Brid Lifts will still fit through a standard doorway without the need for folding rails

All Hy-Brid Lifts fit through standard doorways without having to fold down rails.

Entry Gate

4.6.6.1 Any opening in the floor or between the floor and toeguards or access gates shall be dimensioned so as to prevent the passage of a sphere of 15 mm (.59 in) diameter.

4.6.7 Chains or ropes shall not be used as guardrails or access gates.

What's Changing?

  • The PA-1030 already features a saloon-style gate that meets these requirements.
  • New Pro Series and Zero-Turn Series models will feature a full swing cantilever gate with an elevating toeguard to prevent jamming.

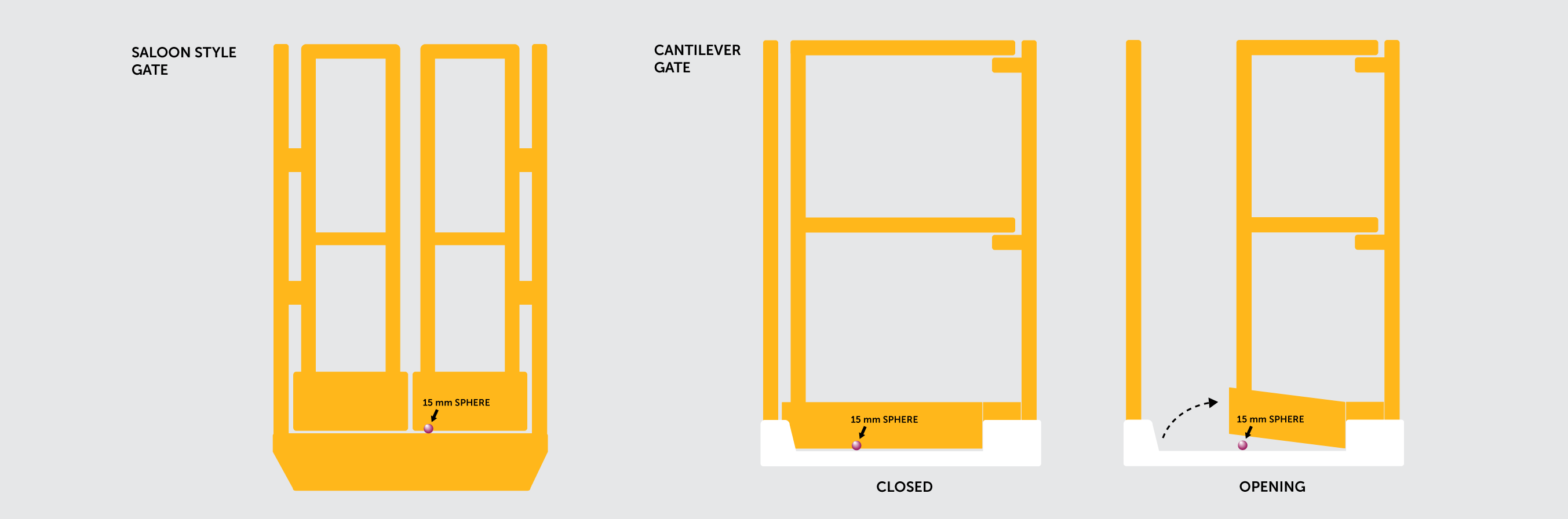

Cantilever and Saloon style gate diagram

Hy-Brid Lifts entry gates allow easy access without having to duck.

Load-Sensing

4.4.1.2 Load-Sensing System

a) It shall trigger after the rated load is reached and before 120% of the rated load is exceeded.

b) When the load-sensing system is triggered, a warning consisting of a flashing red light visible from each preselected control position, together with an acoustic signal audible at each control position, shall be activated. The light shall continue to flash for as long as the overload persists and the acoustic alarm shall sound for periods of at least 5 seconds, repeated every minute.

 c) If the load-sensing system was triggered during movement of the work platform, the possibility of movement shall remain.

 d) If the load-sensing system is triggered while the work platform is stationary, it shall prevent all movement of the work platform. Movement shall only restart if the overload is removed.

 e) For Group A, Type 1 MEWPs (PA-1030), it is permitted for the load-control device to be effective only when raising the extending structure from the lowest position. In this case, for the overload test specified in 5.1.4.4, the test load shall be 150% of the rated load.

 f) For Group A MEWPs, the load-sensing device need not be activated until the work platform is elevated above the lowest position more than 1 m or 10% of lift height, whichever is greater. If an overload condition is sensed at or above this height, further elevation shall be prevented.

What's Changing?

  • All new Hy-Brid Lifts will be unable to elevate fully if their respective lift capacity is exceeded. In order to reach the full working height, weight will have to be removed from the platform.
  • Hy-Brid Lifts Pro Series are equipped with a live load-sensing readout on the platform controls so operators know exactly how close to capacity they are.
  • Higher lift capacities provide workers with the opportunity to carry more tools, materials, and debris without the load sensor preventing elevation.

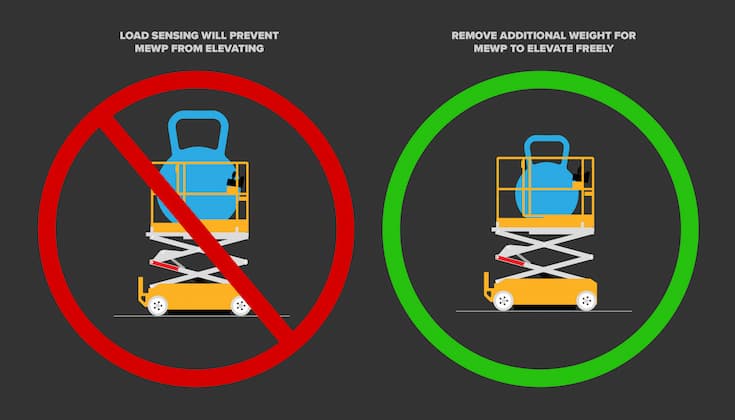

Load sensing system will prevent elevation if platform capacity is above machine standards

Live load-sensing prevents operators from overloading the platform.

Tilt Sensor

4.3.2.1 Every MEWP shall have a device to indicate whether the inclination of the chassis is within the limits permitted by the manufacturer. This device shall be automatic, in accordance with 4.11, and shall be protected against damage and accidental change of its setting. Maintenance adjustment of the device shall require the use of tools.

4.3.2.2 The device shall also prevent elevation beyond the lowered travel position when the chassis inclination is beyond that specified by the manufacturer for that configuration.

What's Changing?

  • All new Hy-Brid Lifts will come equipped with a tilt sensor that will prevent full elevation if the inclination of the MEWP is greater than 1.5 degrees.

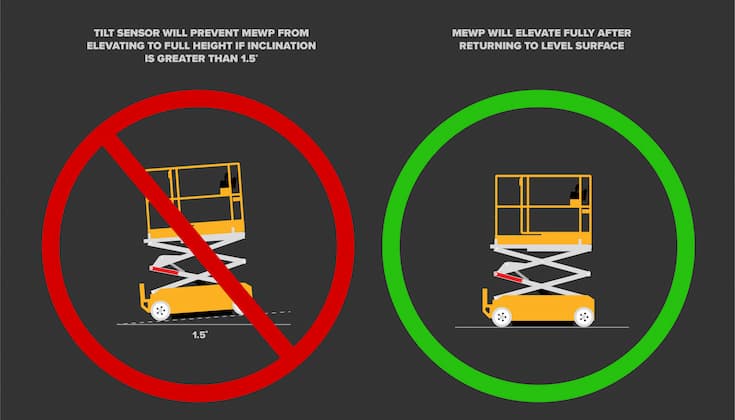

Tilt sensor will prevent MEWP from elevating if inclination is greater than 1.5 degrees

Wind Ratings

  • Hy-Brid Lifts have always been indoor-only work platforms. Push-Around Series and Zero-Turn Series lifts will continue to be indoor-only machines for the time being.
  • Pro Series lifts feature an indoor and outdoor control setting. When wind is present and under 28 mph, Pro Series work platforms can elevate at a reduced height.

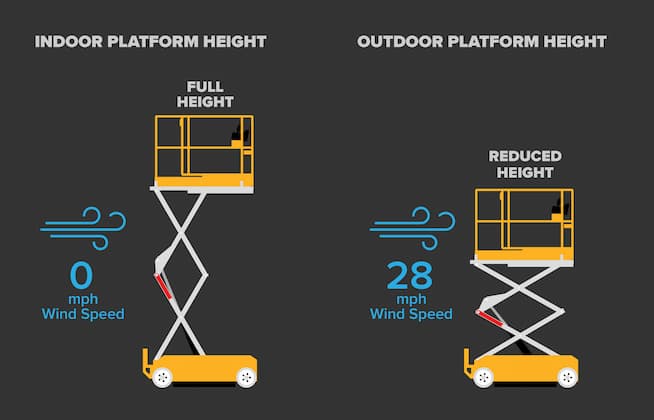

Outdoor platform height on Hy-Brid Lifts uses wind detection

Pro Series work platforms outdoor control setting takes wind speed into consideration.

Tipping Point Testing

4.2.3.5.1  The maximum overturning and corresponding stabilizing moments shall be calculated about the least favorable tipping lines. Tipping lines shall be determined in accordance with ISO 4305; however, for solid and foam-filled tires, the tipping lines may be taken at a point on the tire ground contact at a distance of 25% from the outside edge of the ground contact width.

What's Changing?

  • The tipping point is moving from the center of the work platform to the inside edge of the platform.

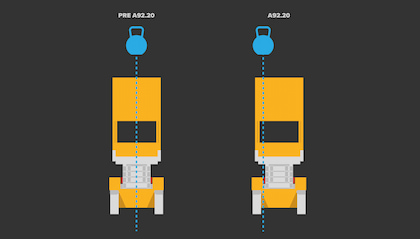

Updated tipping point diagram
