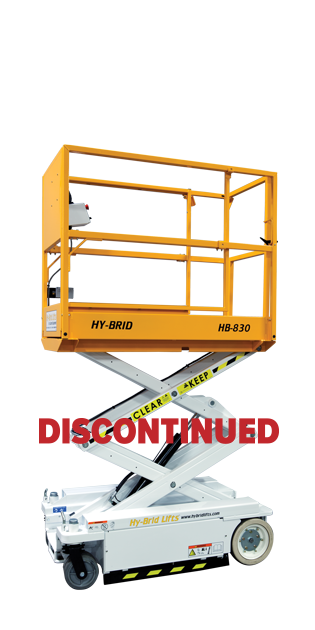

HB-830

Zero-Turn Scissor Lift

The Hy-Brid Lifts HB-830 electric scissor lift has a high lifting capacity, low step-in height, and lightweight design that make this Zero-Turn Series lift the ideal choice for a variety of applications.

Key Features

Working height up to 14 ft
Platform capacity up to 550 lbs
Zero-turn radius
Proportional lift & drive
Low floor load pressures
AGM batteries
Slide out extension deck w/ slip-resistant surface
Large working platform
Non-marking wheels
1-year parts & labor warranty
5-year structural warranty

Floor LoadingMaximum Wheel Load	166.6 psi	1148.7 kPa
Floor LoadingMinimum Wheel Load	112.6 psi	776.3 kPa
HeightsGround Clearance Lowered	2.9 in	7.3 cm
HeightsGround Clearance Raised	0.5 in	1.3 cm
HeightsPlatform Height Max (indoors)	8 ft	2.4 m
HeightsPlatform Height Min	20 in	50.8 cm
HeightsWorking Height (indoors)	14 ft	4.3 m
MeasurementsOverall Length	56 in	1.42 m
MeasurementsOverall Width	30 in	0.76 m
MeasurementsPlatform Extension	30 in	0.76 m
MeasurementsPlatform Length	53 in	1.35 m
MeasurementsPlatform Width	25 in	0.64 m
MeasurementsStowed Height	64 in	1.62 m
PerformanceExtension Capacity	250 lbs	113.4 kg
PerformanceInside Turning Radius	Zero	Zero
PerformanceLift Speed Up/Down	18/16 sec	18/16 sec
PerformancePlatform Capacity	550 lbs	249.5 kg
PerformanceRated Occupancy	2 Person(s)	2 Person(s)
PerformanceWeight	1484 lbs	673.1 kg

Resources

Product Brochure

Series 2 Maintenance and Troubleshooting Manual

Series 1 Operations and Safety Manual

Unique Feature Guide

8322/scissor-lift/en/Hybrid-HB-830-Slab-Scissor-Lift.htmHB-830-en<h2>Zero-Turn Scissor Lift</h2> <p>The Hy-Brid Lifts HB-830 electric scissor lift has a high lifting capacity, low step-in height, and lightweight design that make this <a href="/ansi/Scissor-Lifts/Zero-TurnSeries.htm" linktype="2" target="_self">Zero-Turn Series</a> lift the ideal choice for a variety of applications.</p><h4>Key Features</h4> <ul> <li>Working height up to 14 ft</li> <li>Platform capacity up to 550 lbs</li> <li>Zero-turn radius</li> <li>Proportional lift & drive</li> <li>Low floor load pressures</li> <li>AGM batteries</li> <li>Slide out extension deck w/ slip-resistant surface</li> <li>Large working platform</li> <li>Non-marking wheels</li> <li>1-year parts & labor warranty</li> <li>5-year structural warranty</li> </ul>HB-830Hy-Brid HB-830 Slab Scissor LiftHB-830 Slab Scissor Lift | Hy-Brid LiftsView product information, specifications, and documentation for the Hy-Brid Lifts HB-830 slab scissor lift.hb830, HB-830, Hy-Brid HB-830 Slab Scissor Lift, hybrid lifts hb830, Hy-Brid Lifts HB-830837851/parts_components/HB-830-Base-Brake-Subparts-SN-D03-10002-D03-10091.htmHB-830-Base-Brake Subparts-D03-10002-D03-10091/files/parts/PARTS-HBLGS1-BRAKE-14.jpgHB-830-Base-Brake Subparts-SN-D03-10002-D03-10091HB-830 Base-Brake Subparts SN: D03-10002 D03-10091Hy-Brid Lifts HB-830 Base-Brake Subparts SN: D03-10002 D03-10091LanguageParts_Component_TypeBase-Brake SubpartsParts_Model_NumberHB-830Product_CertificationsProduct_FAQ_Lookup_IDsProduct_Lookup_KeyHB-830-enProduct_MobilityProduct_Serial_Number_RangeD03-10002-D03-10091Product_Specification_CategoryProduct_StatusProduct_Working_Height_FeetProduct_Working_Height_MetersRegionRelated_ProductsVideo_Lookup_KeyCertificationLanguage TagsProduct Series837861/parts_components/HB-830-Base-Brake-Subparts-SN-D03-20000-D03-20003.htmHB-830-Base-Brake Subparts-D03-20000-D03-20003/files/parts/PARTS-HBMDS3-BASE-DRIVE-BRAKESUB.jpgHB-830-Base-Brake Subparts-SN-D03-20000-D03-20003HB-830 Base-Brake Subparts SN: D03-20000 D03-20003Hy-Brid Lifts HB-830 Base-Brake Subparts SN: D03-20000 D03-20003LanguageParts_Component_TypeBase-Brake SubpartsParts_Model_NumberHB-830Product_CertificationsProduct_FAQ_Lookup_IDsProduct_Lookup_KeyHB-830-enProduct_MobilityProduct_Serial_Number_RangeD03-20000-D03-20003Product_Specification_CategoryProduct_StatusProduct_Working_Height_FeetProduct_Working_Height_MetersRegionRelated_ProductsVideo_Lookup_KeyCertificationLanguage TagsProduct Series837871/parts_components/HB-830-Base-Brake-Subparts-SN-D03-20004-D03-29999.htmHB-830-Base-Brake Subparts-D03-20004-D03-29999/files/parts/PARTS-HBMDS3-BASE-DRIVE-BRAKESUB.jpgHB-830-Base-Brake Subparts-SN-D03-20004-D03-29999HB-830 Base-Brake Subparts SN: D03-20004 D03-29999Hy-Brid Lifts HB-830 Base-Brake Subparts SN: D03-20004 D03-29999LanguageParts_Component_TypeBase-Brake SubpartsParts_Model_NumberHB-830Product_CertificationsProduct_FAQ_Lookup_IDsProduct_Lookup_KeyHB-830-enProduct_MobilityProduct_Serial_Number_RangeD03-20004-D03-29999Product_Specification_CategoryProduct_StatusProduct_Working_Height_FeetProduct_Working_Height_MetersRegionRelated_ProductsVideo_Lookup_KeyCertificationLanguage TagsProduct Series837881/parts_components/HB-830-Base-Brake-Subparts-SN-D310002-D310004.htmHB-830-Base-Brake Subparts-D310002-D310004/files/parts/PARTS-HBLGS1-BRAKE-14.jpgHB-830-Base-Brake Subparts-SN-D310002-D310004HB-830 Base-Brake Subparts SN: D310002 D310004Hy-Brid Lifts HB-830 Base-Brake Subparts SN: D310002 D310004LanguageParts_Component_TypeBase-Brake SubpartsParts_Model_NumberHB-830Product_CertificationsProduct_FAQ_Lookup_IDsProduct_Lookup_KeyHB-830-enProduct_MobilityProduct_Serial_Number_RangeD310002-D310004Product_Specification_CategoryProduct_StatusProduct_Working_Height_FeetProduct_Working_Height_MetersRegionRelated_ProductsVideo_Lookup_KeyCertificationLanguage TagsProduct Series837981/parts_components/HB-830-Base-Caster-Parts-SN-D03-10002-D03-10091.htmHB-830-Base-Caster Parts-D03-10002-D03-10091/files/parts/PARTS-HB830S1-BASE-CASTER.jpgHB-830-Base-Caster Parts-SN-D03-10002-D03-10091HB-830 Base-Caster Parts SN: D03-10002 D03-10091Hy-Brid Lifts HB-830 Base-Caster Parts SN: D03-10002 D03-10091LanguageParts_Component_TypeBase-Caster PartsParts_Model_NumberHB-830Product_CertificationsProduct_FAQ_Lookup_IDsProduct_Lookup_KeyHB-830-enProduct_MobilityProduct_Serial_Number_RangeD03-10002-D03-10091Product_Specification_CategoryProduct_StatusProduct_Working_Height_FeetProduct_Working_Height_MetersRegionRelated_ProductsVideo_Lookup_KeyCertificationLanguage TagsProduct Series837991/parts_components/HB-830-Base-Caster-Parts-SN-D03-20000-D03-20003.htmHB-830-Base-Caster Parts-D03-20000-D03-20003/files/parts/PARTS-HBMDS3-BASE-CASTER.jpgHB-830-Base-Caster Parts-SN-D03-20000-D03-20003HB-830 Base-Caster Parts SN: D03-20000 D03-20003Hy-Brid Lifts HB-830 Base-Caster Parts SN: D03-20000 D03-20003LanguageParts_Component_TypeBase-Caster PartsParts_Model_NumberHB-830Product_CertificationsProduct_FAQ_Lookup_IDsProduct_Lookup_KeyHB-830-enProduct_MobilityProduct_Serial_Number_RangeD03-20000-D03-20003Product_Specification_CategoryProduct_StatusProduct_Working_Height_FeetProduct_Working_Height_MetersRegionRelated_ProductsVideo_Lookup_KeyCertificationLanguage TagsProduct Series838001/parts_components/HB-830-Base-Caster-Parts-SN-D03-20004-D03-29999.htmHB-830-Base-Caster Parts-D03-20004-D03-29999/files/parts/PARTS-HBMDS3-BASE-CASTER.jpgHB-830-Base-Caster Parts-SN-D03-20004-D03-29999HB-830 Base-Caster Parts SN: D03-20004 D03-29999Hy-Brid Lifts HB-830 Base-Caster Parts SN: D03-20004 D03-29999LanguageParts_Component_TypeBase-Caster PartsParts_Model_NumberHB-830Product_CertificationsProduct_FAQ_Lookup_IDsProduct_Lookup_KeyHB-830-enProduct_MobilityProduct_Serial_Number_RangeD03-20004-D03-29999Product_Specification_CategoryProduct_StatusProduct_Working_Height_FeetProduct_Working_Height_MetersRegionRelated_ProductsVideo_Lookup_KeyCertificationLanguage TagsProduct Series838011/parts_components/HB-830-Base-Caster-Parts-SN-D310002-D310004.htmHB-830-Base-Caster Parts-D310002-D310004/files/parts/PARTS-HB830S1-BASE-CASTER.jpgHB-830-Base-Caster Parts-SN-D310002-D310004HB-830 Base-Caster Parts SN: D310002 D310004Hy-Brid Lifts HB-830 Base-Caster Parts SN: D310002 D310004LanguageParts_Component_TypeBase-Caster PartsParts_Model_NumberHB-830Product_CertificationsProduct_FAQ_Lookup_IDsProduct_Lookup_KeyHB-830-enProduct_MobilityProduct_Serial_Number_RangeD310002-D310004Product_Specification_CategoryProduct_StatusProduct_Working_Height_FeetProduct_Working_Height_MetersRegionRelated_ProductsVideo_Lookup_KeyCertificationLanguage TagsProduct Series838211/parts_components/HB-830-Base-Caster-Subparts-SN-D03-10002-D03-10091.htmHB-830-Base-Caster Subparts-D03-10002-D03-10091/files/parts/PARTS-HB830S1-BASE-CASTERSUB.jpgHB-830-Base-Caster Subparts-SN-D03-10002-D03-10091HB-830 Base-Caster Subparts SN: D03-10002 D03-10091Hy-Brid Lifts HB-830 Base-Caster Subparts SN: D03-10002 D03-10091LanguageParts_Component_TypeBase-Caster SubpartsParts_Model_NumberHB-830Product_CertificationsProduct_FAQ_Lookup_IDsProduct_Lookup_KeyHB-830-enProduct_MobilityProduct_Serial_Number_RangeD03-10002-D03-10091Product_Specification_CategoryProduct_StatusProduct_Working_Height_FeetProduct_Working_Height_MetersRegionRelated_ProductsVideo_Lookup_KeyCertificationLanguage TagsProduct Series838221/parts_components/HB-830-Base-Caster-Subparts-SN-D03-20000-D03-20003.htmHB-830-Base-Caster Subparts-D03-20000-D03-20003/files/parts/PARTS-HBMDS3-BASE-CASTERSUB.jpgHB-830-Base-Caster Subparts-SN-D03-20000-D03-20003HB-830 Base-Caster Subparts SN: D03-20000 D03-20003Hy-Brid Lifts HB-830 Base-Caster Subparts SN: D03-20000 D03-20003LanguageParts_Component_TypeBase-Caster SubpartsParts_Model_NumberHB-830Product_CertificationsProduct_FAQ_Lookup_IDsProduct_Lookup_KeyHB-830-enProduct_MobilityProduct_Serial_Number_RangeD03-20000-D03-20003Product_Specification_CategoryProduct_StatusProduct_Working_Height_FeetProduct_Working_Height_MetersRegionRelated_ProductsVideo_Lookup_KeyCertificationLanguage TagsProduct Series838231/parts_components/HB-830-Base-Caster-Subparts-SN-D03-20004-D03-29999.htmHB-830-Base-Caster Subparts-D03-20004-D03-29999/files/parts/PARTS-HBMDS3-BASE-CASTERSUB.jpgHB-830-Base-Caster Subparts-SN-D03-20004-D03-29999HB-830 Base-Caster Subparts SN: D03-20004 D03-29999Hy-Brid Lifts HB-830 Base-Caster Subparts SN: D03-20004 D03-29999LanguageParts_Component_TypeBase-Caster SubpartsParts_Model_NumberHB-830Product_CertificationsProduct_FAQ_Lookup_IDsProduct_Lookup_KeyHB-830-enProduct_MobilityProduct_Serial_Number_RangeD03-20004-D03-29999Product_Specification_CategoryProduct_StatusProduct_Working_Height_FeetProduct_Working_Height_MetersRegionRelated_ProductsVideo_Lookup_KeyCertificationLanguage TagsProduct Series838241/parts_components/HB-830-Base-Caster-Subparts-SN-D310002-D310004.htmHB-830-Base-Caster Subparts-D310002-D310004/files/parts/PARTS-HB830S1-BASE-CASTERSUB.jpgHB-830-Base-Caster Subparts-SN-D310002-D310004HB-830 Base-Caster Subparts SN: D310002 D310004Hy-Brid Lifts HB-830 Base-Caster Subparts SN: D310002 D310004LanguageParts_Component_TypeBase-Caster SubpartsParts_Model_NumberHB-830Product_CertificationsProduct_FAQ_Lookup_IDsProduct_Lookup_KeyHB-830-enProduct_MobilityProduct_Serial_Number_RangeD310002-D310004Product_Specification_CategoryProduct_StatusProduct_Working_Height_FeetProduct_Working_Height_MetersRegionRelated_ProductsVideo_Lookup_KeyCertificationLanguage TagsProduct Series838681/parts_components/HB-830-Base-Drive-Parts-SN-D03-10002-D03-10091.htmHB-830-Base-Drive Parts-D03-10002-D03-10091/files/parts/PARTS-HB830S1-BASE-DRIVE.jpgHB-830-Base-Drive Parts-SN-D03-10002-D03-10091HB-830 Base-Drive Parts SN: D03-10002 D03-10091Hy-Brid Lifts HB-830 Base-Drive Parts SN: D03-10002 D03-10091LanguageParts_Component_TypeBase-Drive PartsParts_Model_NumberHB-830Product_CertificationsProduct_FAQ_Lookup_IDsProduct_Lookup_KeyHB-830-enProduct_MobilityProduct_Serial_Number_RangeD03-10002-D03-10091Product_Specification_CategoryProduct_StatusProduct_Working_Height_FeetProduct_Working_Height_MetersRegionRelated_ProductsVideo_Lookup_KeyCertificationLanguage TagsProduct Series838691/parts_components/HB-830-Base-Drive-Parts-SN-D03-20000-D03-20003.htmHB-830-Base-Drive Parts-D03-20000-D03-20003/files/parts/PARTS-HBMDS2-BASE-DRIVE.jpgHB-830-Base-Drive Parts-SN-D03-20000-D03-20003HB-830 Base-Drive Parts SN: D03-20000 D03-20003Hy-Brid Lifts HB-830 Base-Drive Parts SN: D03-20000 D03-20003LanguageParts_Component_TypeBase-Drive PartsParts_Model_NumberHB-830Product_CertificationsProduct_FAQ_Lookup_IDsProduct_Lookup_KeyHB-830-enProduct_MobilityProduct_Serial_Number_RangeD03-20000-D03-20003Product_Specification_CategoryProduct_StatusProduct_Working_Height_FeetProduct_Working_Height_MetersRegionRelated_ProductsVideo_Lookup_KeyCertificationLanguage TagsProduct Series838701/parts_components/HB-830-Base-Drive-Parts-SN-D03-20004-D03-29999.htmHB-830-Base-Drive Parts-D03-20004-D03-29999/files/parts/PARTS-HBMDS3-BASE-DRIVE.jpgHB-830-Base-Drive Parts-SN-D03-20004-D03-29999HB-830 Base-Drive Parts SN: D03-20004 D03-29999Hy-Brid Lifts HB-830 Base-Drive Parts SN: D03-20004 D03-29999LanguageParts_Component_TypeBase-Drive PartsParts_Model_NumberHB-830Product_CertificationsProduct_FAQ_Lookup_IDsProduct_Lookup_KeyHB-830-enProduct_MobilityProduct_Serial_Number_RangeD03-20004-D03-29999Product_Specification_CategoryProduct_StatusProduct_Working_Height_FeetProduct_Working_Height_MetersRegionRelated_ProductsVideo_Lookup_KeyCertificationLanguage TagsProduct Series838711/parts_components/HB-830-Base-Drive-Parts-SN-D310002-D310004.htmHB-830-Base-Drive Parts-D310002-D310004/files/parts/PARTS-HB830S1-BASE-DRIVE.jpgHB-830-Base-Drive Parts-SN-D310002-D310004HB-830 Base-Drive Parts SN: D310002 D310004Hy-Brid Lifts HB-830 Base-Drive Parts SN: D310002 D310004LanguageParts_Component_TypeBase-Drive PartsParts_Model_NumberHB-830Product_CertificationsProduct_FAQ_Lookup_IDsProduct_Lookup_KeyHB-830-enProduct_MobilityProduct_Serial_Number_RangeD310002-D310004Product_Specification_CategoryProduct_StatusProduct_Working_Height_FeetProduct_Working_Height_MetersRegionRelated_ProductsVideo_Lookup_KeyCertificationLanguage TagsProduct Series838871/parts_components/HB-830-Base-Drive-Subparts-SN-D03-10002-D03-10091.htmHB-830-Base-Drive Subparts-D03-10002-D03-10091/files/parts/PARTS-HB-830S1-DRIVE-SUB.jpgHB-830-Base-Drive Subparts-SN-D03-10002-D03-10091HB-830 Base-Drive Subparts SN: D03-10002 D03-10091Hy-Brid Lifts HB-830 Base-Drive Subparts SN: D03-10002 D03-10091LanguageParts_Component_TypeBase-Drive SubpartsParts_Model_NumberHB-830Product_CertificationsProduct_FAQ_Lookup_IDsProduct_Lookup_KeyHB-830-enProduct_MobilityProduct_Serial_Number_RangeD03-10002-D03-10091Product_Specification_CategoryProduct_StatusProduct_Working_Height_FeetProduct_Working_Height_MetersRegionRelated_ProductsVideo_Lookup_KeyCertificationLanguage TagsProduct Series838881/parts_components/HB-830-Base-Drive-Subparts-SN-D03-20000-D03-20003.htmHB-830-Base-Drive Subparts-D03-20000-D03-20003/files/parts/PARTS-HBMDS1-BASE-DRIVESUB.jpgHB-830-Base-Drive Subparts-SN-D03-20000-D03-20003HB-830 Base-Drive Subparts SN: D03-20000 D03-20003Hy-Brid Lifts HB-830 Base-Drive Subparts SN: D03-20000 D03-20003LanguageParts_Component_TypeBase-Drive SubpartsParts_Model_NumberHB-830Product_CertificationsProduct_FAQ_Lookup_IDsProduct_Lookup_KeyHB-830-enProduct_MobilityProduct_Serial_Number_RangeD03-20000-D03-20003Product_Specification_CategoryProduct_StatusProduct_Working_Height_FeetProduct_Working_Height_MetersRegionRelated_ProductsVideo_Lookup_KeyCertificationLanguage TagsProduct Series838891/parts_components/HB-830-Base-Drive-Subparts-SN-D03-20004-D03-29999.htmHB-830-Base-Drive Subparts-D03-20004-D03-29999/files/parts/PARTS-HBMDS3-BASE-DRIVE-SUB.jpgHB-830-Base-Drive Subparts-SN-D03-20004-D03-29999HB-830 Base-Drive Subparts SN: D03-20004 D03-29999Hy-Brid Lifts HB-830 Base-Drive Subparts SN: D03-20004 D03-29999LanguageParts_Component_TypeBase-Drive SubpartsParts_Model_NumberHB-830Product_CertificationsProduct_FAQ_Lookup_IDsProduct_Lookup_KeyHB-830-enProduct_MobilityProduct_Serial_Number_RangeD03-20004-D03-29999Product_Specification_CategoryProduct_StatusProduct_Working_Height_FeetProduct_Working_Height_MetersRegionRelated_ProductsVideo_Lookup_KeyCertificationLanguage TagsProduct Series838901/parts_components/HB-830-Base-Drive-Subparts-SN-D310002-D310004.htmHB-830-Base-Drive Subparts-D310002-D310004/files/parts/PARTS-HB-830S1-DRIVE-SUB.jpgHB-830-Base-Drive Subparts-SN-D310002-D310004HB-830 Base-Drive Subparts SN: D310002 D310004Hy-Brid Lifts HB-830 Base-Drive Subparts SN: D310002 D310004LanguageParts_Component_TypeBase-Drive SubpartsParts_Model_NumberHB-830Product_CertificationsProduct_FAQ_Lookup_IDsProduct_Lookup_KeyHB-830-enProduct_MobilityProduct_Serial_Number_RangeD310002-D310004Product_Specification_CategoryProduct_StatusProduct_Working_Height_FeetProduct_Working_Height_MetersRegionRelated_ProductsVideo_Lookup_KeyCertificationLanguage TagsProduct Series839241/parts_components/HB-830-Base-Misc-Parts-SN-D03-10002-D03-10091.htmHB-830-Base-Misc Parts-D03-10002-D03-10091/files/parts/PARTS-HB830S1-BASE-MISC.jpgHB-830-Base-Misc Parts-SN-D03-10002-D03-10091HB-830 Base-Misc Parts SN: D03-10002 D03-10091Hy-Brid Lifts HB-830 Base-Misc Parts SN: D03-10002 D03-10091LanguageParts_Component_TypeBase-Misc PartsParts_Model_NumberHB-830Product_CertificationsProduct_FAQ_Lookup_IDsProduct_Lookup_KeyHB-830-enProduct_MobilityProduct_Serial_Number_RangeD03-10002-D03-10091Product_Specification_CategoryProduct_StatusProduct_Working_Height_FeetProduct_Working_Height_MetersRegionRelated_ProductsVideo_Lookup_KeyCertificationLanguage TagsProduct Series839251/parts_components/HB-830-Base-Misc-Parts-SN-D03-20000-D03-20003.htmHB-830-Base-Misc Parts-D03-20000-D03-20003/files/parts/PARTS-HBMDS2-BASE-MISC.jpgHB-830-Base-Misc Parts-SN-D03-20000-D03-20003HB-830 Base-Misc Parts SN: D03-20000 D03-20003Hy-Brid Lifts HB-830 Base-Misc Parts SN: D03-20000 D03-20003LanguageParts_Component_TypeBase-Misc PartsParts_Model_NumberHB-830Product_CertificationsProduct_FAQ_Lookup_IDsProduct_Lookup_KeyHB-830-enProduct_MobilityProduct_Serial_Number_RangeD03-20000-D03-20003Product_Specification_CategoryProduct_StatusProduct_Working_Height_FeetProduct_Working_Height_MetersRegionRelated_ProductsVideo_Lookup_KeyCertificationLanguage TagsProduct Series839261/parts_components/HB-830-Base-Misc-Parts-SN-D03-20004-D03-29999.htmHB-830-Base-Misc Parts-D03-20004-D03-29999/files/parts/PARTS-HBMDS3-BASE-MISC.jpgHB-830-Base-Misc Parts-SN-D03-20004-D03-29999HB-830 Base-Misc Parts SN: D03-20004 D03-29999Hy-Brid Lifts HB-830 Base-Misc Parts SN: D03-20004 D03-29999LanguageParts_Component_TypeBase-Misc PartsParts_Model_NumberHB-830Product_CertificationsProduct_FAQ_Lookup_IDsProduct_Lookup_KeyHB-830-enProduct_MobilityProduct_Serial_Number_RangeD03-20004-D03-29999Product_Specification_CategoryProduct_StatusProduct_Working_Height_FeetProduct_Working_Height_MetersRegionRelated_ProductsVideo_Lookup_KeyCertificationLanguage TagsProduct Series839271/parts_components/HB-830-Base-Misc-Parts-SN-D310002-D310004.htmHB-830-Base-Misc Parts-D310002-D310004/files/parts/PARTS-HB830S1-BASE-MISC.jpgHB-830-Base-Misc Parts-SN-D310002-D310004HB-830 Base-Misc Parts SN: D310002 D310004Hy-Brid Lifts HB-830 Base-Misc Parts SN: D310002 D310004LanguageParts_Component_TypeBase-Misc PartsParts_Model_NumberHB-830Product_CertificationsProduct_FAQ_Lookup_IDsProduct_Lookup_KeyHB-830-enProduct_MobilityProduct_Serial_Number_RangeD310002-D310004Product_Specification_CategoryProduct_StatusProduct_Working_Height_FeetProduct_Working_Height_MetersRegionRelated_ProductsVideo_Lookup_KeyCertificationLanguage TagsProduct Series839461/parts_components/HB-830-Base-Pothole-Actuator-Subparts-SN-D03-10002-D03-10091.htmHB-830-Base-Pothole Actuator Subparts-D03-10002-D03-10091/files/parts/PARTS-HB830S1-BASE-PHACT.jpgHB-830-Base-Pothole Actuator Subparts-SN-D03-10002-D03-10091HB-830 Base-Pothole Actuator Subparts SN: D03-10002 D03-10091Hy-Brid Lifts HB-830 Base-Pothole Actuator Subparts SN: D03-10002 D03-10091LanguageParts_Component_TypeBase-Pothole Actuator SubpartsParts_Model_NumberHB-830Product_CertificationsProduct_FAQ_Lookup_IDsProduct_Lookup_KeyHB-830-enProduct_MobilityProduct_Serial_Number_RangeD03-10002-D03-10091Product_Specification_CategoryProduct_StatusProduct_Working_Height_FeetProduct_Working_Height_MetersRegionRelated_ProductsVideo_Lookup_KeyCertificationLanguage TagsProduct Series839471/parts_components/HB-830-Base-Pothole-Actuator-Subparts-SN-D310002-D310004.htmHB-830-Base-Pothole Actuator Subparts-D310002-D310004/files/parts/PARTS-HB830S1-BASE-PHACT.jpgHB-830-Base-Pothole Actuator Subparts-SN-D310002-D310004HB-830 Base-Pothole Actuator Subparts SN: D310002 D310004Hy-Brid Lifts HB-830 Base-Pothole Actuator Subparts SN: D310002 D310004LanguageParts_Component_TypeBase-Pothole Actuator SubpartsParts_Model_NumberHB-830Product_CertificationsProduct_FAQ_Lookup_IDsProduct_Lookup_KeyHB-830-enProduct_MobilityProduct_Serial_Number_RangeD310002-D310004Product_Specification_CategoryProduct_StatusProduct_Working_Height_FeetProduct_Working_Height_MetersRegionRelated_ProductsVideo_Lookup_KeyCertificationLanguage TagsProduct Series839621/parts_components/HB-830-Base-Pothole-Guard-Parts-SN-D03-10002-D03-10091.htmHB-830-Base-Pothole Guard Parts-D03-10002-D03-10091/files/parts/PARTS-HB830S1-PH.jpgHB-830-Base-Pothole Guard Parts-SN-D03-10002-D03-10091HB-830 Base-Pothole Guard Parts SN: D03-10002 D03-10091Hy-Brid Lifts HB-830 Base-Pothole Guard Parts SN: D03-10002 D03-10091LanguageParts_Component_TypeBase-Pothole Guard PartsParts_Model_NumberHB-830Product_CertificationsProduct_FAQ_Lookup_IDsProduct_Lookup_KeyHB-830-enProduct_MobilityProduct_Serial_Number_RangeD03-10002-D03-10091Product_Specification_CategoryProduct_StatusProduct_Working_Height_FeetProduct_Working_Height_MetersRegionRelated_ProductsVideo_Lookup_KeyCertificationLanguage TagsProduct Series839631/parts_components/HB-830-Base-Pothole-Guard-Parts-SN-D03-20000-D03-20003.htmHB-830-Base-Pothole Guard Parts-D03-20000-D03-20003/files/parts/PARTS-HBMDS3-BASE-PH.jpgHB-830-Base-Pothole Guard Parts-SN-D03-20000-D03-20003HB-830 Base-Pothole Guard Parts SN: D03-20000 D03-20003Hy-Brid Lifts HB-830 Base-Pothole Guard Parts SN: D03-20000 D03-20003LanguageParts_Component_TypeBase-Pothole Guard PartsParts_Model_NumberHB-830Product_CertificationsProduct_FAQ_Lookup_IDsProduct_Lookup_KeyHB-830-enProduct_MobilityProduct_Serial_Number_RangeD03-20000-D03-20003Product_Specification_CategoryProduct_StatusProduct_Working_Height_FeetProduct_Working_Height_MetersRegionRelated_ProductsVideo_Lookup_KeyCertificationLanguage TagsProduct Series839641/parts_components/HB-830-Base-Pothole-Guard-Parts-SN-D03-20004-D03-29999.htmHB-830-Base-Pothole Guard Parts-D03-20004-D03-29999/files/parts/PARTS-HBMDS3-BASE-PH.jpgHB-830-Base-Pothole Guard Parts-SN-D03-20004-D03-29999HB-830 Base-Pothole Guard Parts SN: D03-20004 D03-29999Hy-Brid Lifts HB-830 Base-Pothole Guard Parts SN: D03-20004 D03-29999LanguageParts_Component_TypeBase-Pothole Guard PartsParts_Model_NumberHB-830Product_CertificationsProduct_FAQ_Lookup_IDsProduct_Lookup_KeyHB-830-enProduct_MobilityProduct_Serial_Number_RangeD03-20004-D03-29999Product_Specification_CategoryProduct_StatusProduct_Working_Height_FeetProduct_Working_Height_MetersRegionRelated_ProductsVideo_Lookup_KeyCertificationLanguage TagsProduct Series839651/parts_components/HB-830-Base-Pothole-Guard-Parts-SN-D310002-D310004.htmHB-830-Base-Pothole Guard Parts-D310002-D310004/files/parts/PARTS-HB830S1-PH.jpgHB-830-Base-Pothole Guard Parts-SN-D310002-D310004HB-830 Base-Pothole Guard Parts SN: D310002 D310004Hy-Brid Lifts HB-830 Base-Pothole Guard Parts SN: D310002 D310004LanguageParts_Component_TypeBase-Pothole Guard PartsParts_Model_NumberHB-830Product_CertificationsProduct_FAQ_Lookup_IDsProduct_Lookup_KeyHB-830-enProduct_MobilityProduct_Serial_Number_RangeD310002-D310004Product_Specification_CategoryProduct_StatusProduct_Working_Height_FeetProduct_Working_Height_MetersRegionRelated_ProductsVideo_Lookup_KeyCertificationLanguage TagsProduct Series839901/parts_components/HB-830-Base-Pump-Parts-SN-D03-10002-D03-10091.htmHB-830-Base-Pump Parts-D03-10002-D03-10091/files/parts/PARTS-HB830S1-BASE-PUMP.jpgHB-830-Base-Pump Parts-SN-D03-10002-D03-10091HB-830 Base-Pump Parts SN: D03-10002 D03-10091Hy-Brid Lifts HB-830 Base-Pump Parts SN: D03-10002 D03-10091LanguageParts_Component_TypeBase-Pump PartsParts_Model_NumberHB-830Product_CertificationsProduct_FAQ_Lookup_IDsProduct_Lookup_KeyHB-830-enProduct_MobilityProduct_Serial_Number_RangeD03-10002-D03-10091Product_Specification_CategoryProduct_StatusProduct_Working_Height_FeetProduct_Working_Height_MetersRegionRelated_ProductsVideo_Lookup_KeyCertificationLanguage TagsProduct Series839911/parts_components/HB-830-Base-Pump-Parts-SN-D03-20000-D03-20003.htmHB-830-Base-Pump Parts-D03-20000-D03-20003/files/parts/PARTS-HBMDS2-BASE-PUMP-ANSI.jpgHB-830-Base-Pump Parts-SN-D03-20000-D03-20003HB-830 Base-Pump Parts SN: D03-20000 D03-20003Hy-Brid Lifts HB-830 Base-Pump Parts SN: D03-20000 D03-20003LanguageParts_Component_TypeBase-Pump PartsParts_Model_NumberHB-830Product_CertificationsProduct_FAQ_Lookup_IDsProduct_Lookup_KeyHB-830-enProduct_MobilityProduct_Serial_Number_RangeD03-20000-D03-20003Product_Specification_CategoryProduct_StatusProduct_Working_Height_FeetProduct_Working_Height_MetersRegionRelated_ProductsVideo_Lookup_KeyCertificationLanguage TagsProduct Series839921/parts_components/HB-830-Base-Pump-Parts-SN-D03-20004-D03-29999.htmHB-830-Base-Pump Parts-D03-20004-D03-29999/files/parts/PARTS-HBMDS2-BASE-PUMP-ANSI.jpgHB-830-Base-Pump Parts-SN-D03-20004-D03-29999HB-830 Base-Pump Parts SN: D03-20004 D03-29999Hy-Brid Lifts HB-830 Base-Pump Parts SN: D03-20004 D03-29999LanguageParts_Component_TypeBase-Pump PartsParts_Model_NumberHB-830Product_CertificationsProduct_FAQ_Lookup_IDsProduct_Lookup_KeyHB-830-enProduct_MobilityProduct_Serial_Number_RangeD03-20004-D03-29999Product_Specification_CategoryProduct_StatusProduct_Working_Height_FeetProduct_Working_Height_MetersRegionRelated_ProductsVideo_Lookup_KeyCertificationLanguage TagsProduct Series839931/parts_components/HB-830-Base-Pump-Parts-SN-D310002-D310004.htmHB-830-Base-Pump Parts-D310002-D310004/files/parts/PARTS-HB830S1-BASE-PUMP.jpgHB-830-Base-Pump Parts-SN-D310002-D310004HB-830 Base-Pump Parts SN: D310002 D310004Hy-Brid Lifts HB-830 Base-Pump Parts SN: D310002 D310004LanguageParts_Component_TypeBase-Pump PartsParts_Model_NumberHB-830Product_CertificationsProduct_FAQ_Lookup_IDsProduct_Lookup_KeyHB-830-enProduct_MobilityProduct_Serial_Number_RangeD310002-D310004Product_Specification_CategoryProduct_StatusProduct_Working_Height_FeetProduct_Working_Height_MetersRegionRelated_ProductsVideo_Lookup_KeyCertificationLanguage TagsProduct Series840141/parts_components/HB-830-Base-Pump-Subparts-SN-D03-10002-D03-10091.htmHB-830-Base-Pump Subparts-D03-10002-D03-10091/files/parts/PARTS-HB830S1-BASE-PUMP-SUB.jpgHB-830-Base-Pump Subparts-SN-D03-10002-D03-10091HB-830 Base-Pump Subparts SN: D03-10002 D03-10091Hy-Brid Lifts HB-830 Base-Pump Subparts SN: D03-10002 D03-10091LanguageParts_Component_TypeBase-Pump SubpartsParts_Model_NumberHB-830Product_CertificationsProduct_FAQ_Lookup_IDsProduct_Lookup_KeyHB-830-enProduct_MobilityProduct_Serial_Number_RangeD03-10002-D03-10091Product_Specification_CategoryProduct_StatusProduct_Working_Height_FeetProduct_Working_Height_MetersRegionRelated_ProductsVideo_Lookup_KeyCertificationLanguage TagsProduct Series840151/parts_components/HB-830-Base-Pump-Subparts-SN-D03-20000-D03-20003.htmHB-830-Base-Pump Subparts-D03-20000-D03-20003/files/parts/PARTS-HBMDS3-BASE-PUMP-SUB.jpgHB-830-Base-Pump Subparts-SN-D03-20000-D03-20003HB-830 Base-Pump Subparts SN: D03-20000 D03-20003Hy-Brid Lifts HB-830 Base-Pump Subparts SN: D03-20000 D03-20003LanguageParts_Component_TypeBase-Pump SubpartsParts_Model_NumberHB-830Product_CertificationsProduct_FAQ_Lookup_IDsProduct_Lookup_KeyHB-830-enProduct_MobilityProduct_Serial_Number_RangeD03-20000-D03-20003Product_Specification_CategoryProduct_StatusProduct_Working_Height_FeetProduct_Working_Height_MetersRegionRelated_ProductsVideo_Lookup_KeyCertificationLanguage TagsProduct Series840161/parts_components/HB-830-Base-Pump-Subparts-SN-D03-20004-D03-29999.htmHB-830-Base-Pump Subparts-D03-20004-D03-29999/files/parts/PARTS-HBMDS3-BASE-PUMP-SUB.jpgHB-830-Base-Pump Subparts-SN-D03-20004-D03-29999HB-830 Base-Pump Subparts SN: D03-20004 D03-29999Hy-Brid Lifts HB-830 Base-Pump Subparts SN: D03-20004 D03-29999LanguageParts_Component_TypeBase-Pump SubpartsParts_Model_NumberHB-830Product_CertificationsProduct_FAQ_Lookup_IDsProduct_Lookup_KeyHB-830-enProduct_MobilityProduct_Serial_Number_RangeD03-20004-D03-29999Product_Specification_CategoryProduct_StatusProduct_Working_Height_FeetProduct_Working_Height_MetersRegionRelated_ProductsVideo_Lookup_KeyCertificationLanguage TagsProduct Series840171/parts_components/HB-830-Base-Pump-Subparts-SN-D310002-D310004.htmHB-830-Base-Pump Subparts-D310002-D310004/files/parts/PARTS-HB830S1-BASE-PUMP-SUB.jpgHB-830-Base-Pump Subparts-SN-D310002-D310004HB-830 Base-Pump Subparts SN: D310002 D310004Hy-Brid Lifts HB-830 Base-Pump Subparts SN: D310002 D310004LanguageParts_Component_TypeBase-Pump SubpartsParts_Model_NumberHB-830Product_CertificationsProduct_FAQ_Lookup_IDsProduct_Lookup_KeyHB-830-enProduct_MobilityProduct_Serial_Number_RangeD310002-D310004Product_Specification_CategoryProduct_StatusProduct_Working_Height_FeetProduct_Working_Height_MetersRegionRelated_ProductsVideo_Lookup_KeyCertificationLanguage TagsProduct Series840391/parts_components/HB-830-Base-Rear-Wheel-Subparts-SN-D03-10002-D03-10091.htmHB-830-Base-Rear Wheel Subparts-D03-10002-D03-10091/files/parts/PARTS-HB830S1-REARWHL.jpgHB-830-Base-Rear Wheel Subparts-SN-D03-10002-D03-10091HB-830 Base-Rear Wheel Subparts SN: D03-10002 D03-10091Hy-Brid Lifts HB-830 Base-Rear Wheel Subparts SN: D03-10002 D03-10091LanguageParts_Component_TypeBase-Rear Wheel SubpartsParts_Model_NumberHB-830Product_CertificationsProduct_FAQ_Lookup_IDsProduct_Lookup_KeyHB-830-enProduct_MobilityProduct_Serial_Number_RangeD03-10002-D03-10091Product_Specification_CategoryProduct_StatusProduct_Working_Height_FeetProduct_Working_Height_MetersRegionRelated_ProductsVideo_Lookup_KeyCertificationLanguage TagsProduct Series840401/parts_components/HB-830-Base-Rear-Wheel-Subparts-SN-D03-20000-D03-20003.htmHB-830-Base-Rear Wheel Subparts-D03-20000-D03-20003/files/parts/PARTS-MULT-WHEE-618.jpgHB-830-Base-Rear Wheel Subparts-SN-D03-20000-D03-20003HB-830 Base-Rear Wheel Subparts SN: D03-20000 D03-20003Hy-Brid Lifts HB-830 Base-Rear Wheel Subparts SN: D03-20000 D03-20003LanguageParts_Component_TypeBase-Rear Wheel SubpartsParts_Model_NumberHB-830Product_CertificationsProduct_FAQ_Lookup_IDsProduct_Lookup_KeyHB-830-enProduct_MobilityProduct_Serial_Number_RangeD03-20000-D03-20003Product_Specification_CategoryProduct_StatusProduct_Working_Height_FeetProduct_Working_Height_MetersRegionRelated_ProductsVideo_Lookup_KeyCertificationLanguage TagsProduct Series840411/parts_components/HB-830-Base-Rear-Wheel-Subparts-SN-D03-20004-D03-29999.htmHB-830-Base-Rear Wheel Subparts-D03-20004-D03-29999/files/parts/PARTS-MULT-WHEE-618.jpgHB-830-Base-Rear Wheel Subparts-SN-D03-20004-D03-29999HB-830 Base-Rear Wheel Subparts SN: D03-20004 D03-29999Hy-Brid Lifts HB-830 Base-Rear Wheel Subparts SN: D03-20004 D03-29999LanguageParts_Component_TypeBase-Rear Wheel SubpartsParts_Model_NumberHB-830Product_CertificationsProduct_FAQ_Lookup_IDsProduct_Lookup_KeyHB-830-enProduct_MobilityProduct_Serial_Number_RangeD03-20004-D03-29999Product_Specification_CategoryProduct_StatusProduct_Working_Height_FeetProduct_Working_Height_MetersRegionRelated_ProductsVideo_Lookup_KeyCertificationLanguage TagsProduct Series840421/parts_components/HB-830-Base-Rear-Wheel-Subparts-SN-D310002-D310004.htmHB-830-Base-Rear Wheel Subparts-D310002-D310004/files/parts/PARTS-HB830S1-REARWHL.jpgHB-830-Base-Rear Wheel Subparts-SN-D310002-D310004HB-830 Base-Rear Wheel Subparts SN: D310002 D310004Hy-Brid Lifts HB-830 Base-Rear Wheel Subparts SN: D310002 D310004LanguageParts_Component_TypeBase-Rear Wheel SubpartsParts_Model_NumberHB-830Product_CertificationsProduct_FAQ_Lookup_IDsProduct_Lookup_KeyHB-830-enProduct_MobilityProduct_Serial_Number_RangeD310002-D310004Product_Specification_CategoryProduct_StatusProduct_Working_Height_FeetProduct_Working_Height_MetersRegionRelated_ProductsVideo_Lookup_KeyCertificationLanguage TagsProduct Series840781/parts_components/HB-830-Controls-Drive-Enable-Switch-Subparts-SN-D03-10002-D03-10091.htmHB-830-Controls-Drive Enable Switch Subparts-D03-10002-D03-10091/files/parts/PARTS-MULT-ELEC-602D-KIT.jpgHB-830-Controls-Drive Enable Switch Subparts-SN-D03-10002-D03-10091HB-830 Controls-Drive Enable Switch Subparts SN: D03-10002 D03-10091Hy-Brid Lifts HB-830 Controls-Drive Enable Switch Subparts SN: D03-10002 D03-10091LanguageParts_Component_TypeControls-Drive Enable Switch SubpartsParts_Model_NumberHB-830Product_CertificationsProduct_FAQ_Lookup_IDsProduct_Lookup_KeyHB-830-enProduct_MobilityProduct_Serial_Number_RangeD03-10002-D03-10091Product_Specification_CategoryProduct_StatusProduct_Working_Height_FeetProduct_Working_Height_MetersRegionRelated_ProductsVideo_Lookup_KeyCertificationLanguage TagsProduct Series840791/parts_components/HB-830-Controls-Drive-Enable-Switch-Subparts-SN-D310002-D310004.htmHB-830-Controls-Drive Enable Switch Subparts-D310002-D310004/files/parts/PARTS-MULT-ELEC-602D-KIT.jpgHB-830-Controls-Drive Enable Switch Subparts-SN-D310002-D310004HB-830 Controls-Drive Enable Switch Subparts SN: D310002 D310004Hy-Brid Lifts HB-830 Controls-Drive Enable Switch Subparts SN: D310002 D310004LanguageParts_Component_TypeControls-Drive Enable Switch SubpartsParts_Model_NumberHB-830Product_CertificationsProduct_FAQ_Lookup_IDsProduct_Lookup_KeyHB-830-enProduct_MobilityProduct_Serial_Number_RangeD310002-D310004Product_Specification_CategoryProduct_StatusProduct_Working_Height_FeetProduct_Working_Height_MetersRegionRelated_ProductsVideo_Lookup_KeyCertificationLanguage TagsProduct Series840931/parts_components/HB-830-Controls-Electrical-Parts-SN-D03-10002-D03-10091.htmHB-830-Controls-Electrical Parts-D03-10002-D03-10091/files/parts/PARTS-HB830S1-CTL-ANSI.jpgHB-830-Controls-Electrical Parts-SN-D03-10002-D03-10091HB-830 Controls-Electrical Parts SN: D03-10002 D03-10091Hy-Brid Lifts HB-830 Controls-Electrical Parts SN: D03-10002 D03-10091LanguageParts_Component_TypeControls-Electrical PartsParts_Model_NumberHB-830Product_CertificationsProduct_FAQ_Lookup_IDsProduct_Lookup_KeyHB-830-enProduct_MobilityProduct_Serial_Number_RangeD03-10002-D03-10091Product_Specification_CategoryProduct_StatusProduct_Working_Height_FeetProduct_Working_Height_MetersRegionRelated_ProductsVideo_Lookup_KeyCertificationLanguage TagsProduct Series840941/parts_components/HB-830-Controls-Electrical-Parts-SN-D03-20000-D03-20003.htmHB-830-Controls-Electrical Parts-D03-20000-D03-20003/files/parts/PARTS-HBMDS2-CTL-ANSI.jpgHB-830-Controls-Electrical Parts-SN-D03-20000-D03-20003HB-830 Controls-Electrical Parts SN: D03-20000 D03-20003Hy-Brid Lifts HB-830 Controls-Electrical Parts SN: D03-20000 D03-20003LanguageParts_Component_TypeControls-Electrical PartsParts_Model_NumberHB-830Product_CertificationsProduct_FAQ_Lookup_IDsProduct_Lookup_KeyHB-830-enProduct_MobilityProduct_Serial_Number_RangeD03-20000-D03-20003Product_Specification_CategoryProduct_StatusProduct_Working_Height_FeetProduct_Working_Height_MetersRegionRelated_ProductsVideo_Lookup_KeyCertificationLanguage TagsProduct Series840951/parts_components/HB-830-Controls-Electrical-Parts-SN-D03-20004-D03-29999.htmHB-830-Controls-Electrical Parts-D03-20004-D03-29999/files/parts/PARTS-HBMDS3-CTL.jpgHB-830-Controls-Electrical Parts-SN-D03-20004-D03-29999HB-830 Controls-Electrical Parts SN: D03-20004 D03-29999Hy-Brid Lifts HB-830 Controls-Electrical Parts SN: D03-20004 D03-29999LanguageParts_Component_TypeControls-Electrical PartsParts_Model_NumberHB-830Product_CertificationsProduct_FAQ_Lookup_IDsProduct_Lookup_KeyHB-830-enProduct_MobilityProduct_Serial_Number_RangeD03-20004-D03-29999Product_Specification_CategoryProduct_StatusProduct_Working_Height_FeetProduct_Working_Height_MetersRegionRelated_ProductsVideo_Lookup_KeyCertificationLanguage TagsProduct Series840961/parts_components/HB-830-Controls-Electrical-Parts-SN-D310002-D310004.htmHB-830-Controls-Electrical Parts-D310002-D310004/files/parts/PARTS-HB830S1-CTL-ANSI.jpgHB-830-Controls-Electrical Parts-SN-D310002-D310004HB-830 Controls-Electrical Parts SN: D310002 D310004Hy-Brid Lifts HB-830 Controls-Electrical Parts SN: D310002 D310004LanguageParts_Component_TypeControls-Electrical PartsParts_Model_NumberHB-830Product_CertificationsProduct_FAQ_Lookup_IDsProduct_Lookup_KeyHB-830-enProduct_MobilityProduct_Serial_Number_RangeD310002-D310004Product_Specification_CategoryProduct_StatusProduct_Working_Height_FeetProduct_Working_Height_MetersRegionRelated_ProductsVideo_Lookup_KeyCertificationLanguage TagsProduct Series841051/parts_components/HB-830-Controls-Elevate-Enable-Switch-Subparts-SN-D03-10002-D03-10091.htmHB-830-Controls-Elevate Enable Switch Subparts-D03-10002-D03-10091/files/parts/PARTS-MULT-ELEC-602-KIT.jpgHB-830-Controls-Elevate Enable Switch Subparts-SN-D03-10002-D03-10091HB-830 Controls-Elevate Enable Switch Subparts SN: D03-10002 D03-10091Hy-Brid Lifts HB-830 Controls-Elevate Enable Switch Subparts SN: D03-10002 D03-10091LanguageParts_Component_TypeControls-Elevate Enable Switch SubpartsParts_Model_NumberHB-830Product_CertificationsProduct_FAQ_Lookup_IDsProduct_Lookup_KeyHB-830-enProduct_MobilityProduct_Serial_Number_RangeD03-10002-D03-10091Product_Specification_CategoryProduct_StatusProduct_Working_Height_FeetProduct_Working_Height_MetersRegionRelated_ProductsVideo_Lookup_KeyCertificationLanguage TagsProduct Series841061/parts_components/HB-830-Controls-Elevate-Enable-Switch-Subparts-SN-D310002-D310004.htmHB-830-Controls-Elevate Enable Switch Subparts-D310002-D310004/files/parts/PARTS-MULT-ELEC-602-KIT.jpgHB-830-Controls-Elevate Enable Switch Subparts-SN-D310002-D310004HB-830 Controls-Elevate Enable Switch Subparts SN: D310002 D310004Hy-Brid Lifts HB-830 Controls-Elevate Enable Switch Subparts SN: D310002 D310004LanguageParts_Component_TypeControls-Elevate Enable Switch SubpartsParts_Model_NumberHB-830Product_CertificationsProduct_FAQ_Lookup_IDsProduct_Lookup_KeyHB-830-enProduct_MobilityProduct_Serial_Number_RangeD310002-D310004Product_Specification_CategoryProduct_StatusProduct_Working_Height_FeetProduct_Working_Height_MetersRegionRelated_ProductsVideo_Lookup_KeyCertificationLanguage TagsProduct Series841231/parts_components/HB-830-Controls-E-Stop-Switch-Subparts-SN-D03-10002-D03-10091.htmHB-830-Controls-E-Stop Switch Subparts-D03-10002-D03-10091/files/parts/PARTS-MULT-ELEC-071-KIT.jpgHB-830-Controls-E-Stop Switch Subparts-SN-D03-10002-D03-10091HB-830 Controls-E-Stop Switch Subparts SN: D03-10002 D03-10091Hy-Brid Lifts HB-830 Controls-E-Stop Switch Subparts SN: D03-10002 D03-10091LanguageParts_Component_TypeControls-E-Stop Switch SubpartsParts_Model_NumberHB-830Product_CertificationsProduct_FAQ_Lookup_IDsProduct_Lookup_KeyHB-830-enProduct_MobilityProduct_Serial_Number_RangeD03-10002-D03-10091Product_Specification_CategoryProduct_StatusProduct_Working_Height_FeetProduct_Working_Height_MetersRegionRelated_ProductsVideo_Lookup_KeyCertificationLanguage TagsProduct Series841241/parts_components/HB-830-Controls-E-Stop-Switch-Subparts-SN-D03-20000-D03-20003.htmHB-830-Controls-E-Stop Switch Subparts-D03-20000-D03-20003/files/parts/PARTS-MULT-ELEC-071-KIT.jpgHB-830-Controls-E-Stop Switch Subparts-SN-D03-20000-D03-20003HB-830 Controls-E-Stop Switch Subparts SN: D03-20000 D03-20003Hy-Brid Lifts HB-830 Controls-E-Stop Switch Subparts SN: D03-20000 D03-20003LanguageParts_Component_TypeControls-E-Stop Switch SubpartsParts_Model_NumberHB-830Product_CertificationsProduct_FAQ_Lookup_IDsProduct_Lookup_KeyHB-830-enProduct_MobilityProduct_Serial_Number_RangeD03-20000-D03-20003Product_Specification_CategoryProduct_StatusProduct_Working_Height_FeetProduct_Working_Height_MetersRegionRelated_ProductsVideo_Lookup_KeyCertificationLanguage TagsProduct Series841251/parts_components/HB-830-Controls-E-Stop-Switch-Subparts-SN-D03-20004-D03-29999.htmHB-830-Controls-E-Stop Switch Subparts-D03-20004-D03-29999/files/parts/PARTS-MULT-ELEC-071-KIT.jpgHB-830-Controls-E-Stop Switch Subparts-SN-D03-20004-D03-29999HB-830 Controls-E-Stop Switch Subparts SN: D03-20004 D03-29999Hy-Brid Lifts HB-830 Controls-E-Stop Switch Subparts SN: D03-20004 D03-29999LanguageParts_Component_TypeControls-E-Stop Switch SubpartsParts_Model_NumberHB-830Product_CertificationsProduct_FAQ_Lookup_IDsProduct_Lookup_KeyHB-830-enProduct_MobilityProduct_Serial_Number_RangeD03-20004-D03-29999Product_Specification_CategoryProduct_StatusProduct_Working_Height_FeetProduct_Working_Height_MetersRegionRelated_ProductsVideo_Lookup_KeyCertificationLanguage TagsProduct Series841261/parts_components/HB-830-Controls-E-Stop-Switch-Subparts-SN-D310002-D310004.htmHB-830-Controls-E-Stop Switch Subparts-D310002-D310004/files/parts/PARTS-MULT-ELEC-071-KIT.jpgHB-830-Controls-E-Stop Switch Subparts-SN-D310002-D310004HB-830 Controls-E-Stop Switch Subparts SN: D310002 D310004Hy-Brid Lifts HB-830 Controls-E-Stop Switch Subparts SN: D310002 D310004LanguageParts_Component_TypeControls-E-Stop Switch SubpartsParts_Model_NumberHB-830Product_CertificationsProduct_FAQ_Lookup_IDsProduct_Lookup_KeyHB-830-enProduct_MobilityProduct_Serial_Number_RangeD310002-D310004Product_Specification_CategoryProduct_StatusProduct_Working_Height_FeetProduct_Working_Height_MetersRegionRelated_ProductsVideo_Lookup_KeyCertificationLanguage TagsProduct Series841441/parts_components/HB-830-Controls-Joystick-Subparts-SN-D03-10002-D03-10091.htmHB-830-Controls-Joystick Subparts-D03-10002-D03-10091/files/parts/PARTS-HB830S1-JOYSTICKSUB.jpgHB-830-Controls-Joystick Subparts-SN-D03-10002-D03-10091HB-830 Controls-Joystick Subparts SN: D03-10002 D03-10091Hy-Brid Lifts HB-830 Controls-Joystick Subparts SN: D03-10002 D03-10091LanguageParts_Component_TypeControls-Joystick SubpartsParts_Model_NumberHB-830Product_CertificationsProduct_FAQ_Lookup_IDsProduct_Lookup_KeyHB-830-enProduct_MobilityProduct_Serial_Number_RangeD03-10002-D03-10091Product_Specification_CategoryProduct_StatusProduct_Working_Height_FeetProduct_Working_Height_MetersRegionRelated_ProductsVideo_Lookup_KeyCertificationLanguage TagsProduct Series841451/parts_components/HB-830-Controls-Joystick-Subparts-SN-D310002-D310004.htmHB-830-Controls-Joystick Subparts-D310002-D310004/files/parts/PARTS-HB830S1-JOYSTICKSUB.jpgHB-830-Controls-Joystick Subparts-SN-D310002-D310004HB-830 Controls-Joystick Subparts SN: D310002 D310004Hy-Brid Lifts HB-830 Controls-Joystick Subparts SN: D310002 D310004LanguageParts_Component_TypeControls-Joystick SubpartsParts_Model_NumberHB-830Product_CertificationsProduct_FAQ_Lookup_IDsProduct_Lookup_KeyHB-830-enProduct_MobilityProduct_Serial_Number_RangeD310002-D310004Product_Specification_CategoryProduct_StatusProduct_Working_Height_FeetProduct_Working_Height_MetersRegionRelated_ProductsVideo_Lookup_KeyCertificationLanguage TagsProduct Series841611/parts_components/HB-830-Controls-Key-Switch-Subparts-SN-D03-10002-D03-10091.htmHB-830-Controls-Key Switch Subparts-D03-10002-D03-10091/files/parts/PARTS-MULT-ELEC-073E.jpgHB-830-Controls-Key Switch Subparts-SN-D03-10002-D03-10091HB-830 Controls-Key Switch Subparts SN: D03-10002 D03-10091Hy-Brid Lifts HB-830 Controls-Key Switch Subparts SN: D03-10002 D03-10091LanguageParts_Component_TypeControls-Key Switch SubpartsParts_Model_NumberHB-830Product_CertificationsProduct_FAQ_Lookup_IDsProduct_Lookup_KeyHB-830-enProduct_MobilityProduct_Serial_Number_RangeD03-10002-D03-10091Product_Specification_CategoryProduct_StatusProduct_Working_Height_FeetProduct_Working_Height_MetersRegionRelated_ProductsVideo_Lookup_KeyCertificationLanguage TagsProduct Series841621/parts_components/HB-830-Controls-Key-Switch-Subparts-SN-D03-20000-D03-20003.htmHB-830-Controls-Key Switch Subparts-D03-20000-D03-20003/files/parts/PARTS-MULT-ELEC-073D-KIT.jpgHB-830-Controls-Key Switch Subparts-SN-D03-20000-D03-20003HB-830 Controls-Key Switch Subparts SN: D03-20000 D03-20003Hy-Brid Lifts HB-830 Controls-Key Switch Subparts SN: D03-20000 D03-20003LanguageParts_Component_TypeControls-Key Switch SubpartsParts_Model_NumberHB-830Product_CertificationsProduct_FAQ_Lookup_IDsProduct_Lookup_KeyHB-830-enProduct_MobilityProduct_Serial_Number_RangeD03-20000-D03-20003Product_Specification_CategoryProduct_StatusProduct_Working_Height_FeetProduct_Working_Height_MetersRegionRelated_ProductsVideo_Lookup_KeyCertificationLanguage TagsProduct Series841631/parts_components/HB-830-Controls-Key-Switch-Subparts-SN-D03-20004-D03-29999.htmHB-830-Controls-Key Switch Subparts-D03-20004-D03-29999/files/parts/PARTS-MULT-ELEC-073D-KIT.jpgHB-830-Controls-Key Switch Subparts-SN-D03-20004-D03-29999HB-830 Controls-Key Switch Subparts SN: D03-20004 D03-29999Hy-Brid Lifts HB-830 Controls-Key Switch Subparts SN: D03-20004 D03-29999LanguageParts_Component_TypeControls-Key Switch SubpartsParts_Model_NumberHB-830Product_CertificationsProduct_FAQ_Lookup_IDsProduct_Lookup_KeyHB-830-enProduct_MobilityProduct_Serial_Number_RangeD03-20004-D03-29999Product_Specification_CategoryProduct_StatusProduct_Working_Height_FeetProduct_Working_Height_MetersRegionRelated_ProductsVideo_Lookup_KeyCertificationLanguage TagsProduct Series841641/parts_components/HB-830-Controls-Key-Switch-Subparts-SN-D310002-D310004.htmHB-830-Controls-Key Switch Subparts-D310002-D310004/files/parts/PARTS-MULT-ELEC-073E.jpgHB-830-Controls-Key Switch Subparts-SN-D310002-D310004HB-830 Controls-Key Switch Subparts SN: D310002 D310004Hy-Brid Lifts HB-830 Controls-Key Switch Subparts SN: D310002 D310004LanguageParts_Component_TypeControls-Key Switch SubpartsParts_Model_NumberHB-830Product_CertificationsProduct_FAQ_Lookup_IDsProduct_Lookup_KeyHB-830-enProduct_MobilityProduct_Serial_Number_RangeD310002-D310004Product_Specification_CategoryProduct_StatusProduct_Working_Height_FeetProduct_Working_Height_MetersRegionRelated_ProductsVideo_Lookup_KeyCertificationLanguage TagsProduct Series841831/parts_components/HB-830-Controls-Lower-Control-Parts-SN-D03-10002-D03-10091.htmHB-830-Controls-Lower Control Parts-D03-10002-D03-10091/files/parts/PARTS-HB830S1-CTL-LWR-ANSI.jpgHB-830-Controls-Lower Control Parts-SN-D03-10002-D03-10091HB-830 Controls-Lower Control Parts SN: D03-10002 D03-10091Hy-Brid Lifts HB-830 Controls-Lower Control Parts SN: D03-10002 D03-10091LanguageParts_Component_TypeControls-Lower Control PartsParts_Model_NumberHB-830Product_CertificationsProduct_FAQ_Lookup_IDsProduct_Lookup_KeyHB-830-enProduct_MobilityProduct_Serial_Number_RangeD03-10002-D03-10091Product_Specification_CategoryProduct_StatusProduct_Working_Height_FeetProduct_Working_Height_MetersRegionRelated_ProductsVideo_Lookup_KeyCertificationLanguage TagsProduct Series841841/parts_components/HB-830-Controls-Lower-Control-Parts-SN-D03-20000-D03-20003.htmHB-830-Controls-Lower Control Parts-D03-20000-D03-20003/files/parts/PARTS-HBMDS2-CTL-LWR-ANSI.jpgHB-830-Controls-Lower Control Parts-SN-D03-20000-D03-20003HB-830 Controls-Lower Control Parts SN: D03-20000 D03-20003Hy-Brid Lifts HB-830 Controls-Lower Control Parts SN: D03-20000 D03-20003LanguageParts_Component_TypeControls-Lower Control PartsParts_Model_NumberHB-830Product_CertificationsProduct_FAQ_Lookup_IDsProduct_Lookup_KeyHB-830-enProduct_MobilityProduct_Serial_Number_RangeD03-20000-D03-20003Product_Specification_CategoryProduct_StatusProduct_Working_Height_FeetProduct_Working_Height_MetersRegionRelated_ProductsVideo_Lookup_KeyCertificationLanguage TagsProduct Series841851/parts_components/HB-830-Controls-Lower-Control-Parts-SN-D03-20004-D03-29999.htmHB-830-Controls-Lower Control Parts-D03-20004-D03-29999/files/parts/PARTS-HBMDS2-CTL-LWR-ANSI.jpgHB-830-Controls-Lower Control Parts-SN-D03-20004-D03-29999HB-830 Controls-Lower Control Parts SN: D03-20004 D03-29999Hy-Brid Lifts HB-830 Controls-Lower Control Parts SN: D03-20004 D03-29999LanguageParts_Component_TypeControls-Lower Control PartsParts_Model_NumberHB-830Product_CertificationsProduct_FAQ_Lookup_IDsProduct_Lookup_KeyHB-830-enProduct_MobilityProduct_Serial_Number_RangeD03-20004-D03-29999Product_Specification_CategoryProduct_StatusProduct_Working_Height_FeetProduct_Working_Height_MetersRegionRelated_ProductsVideo_Lookup_KeyCertificationLanguage TagsProduct Series841861/parts_components/HB-830-Controls-Lower-Control-Parts-SN-D310002-D310004.htmHB-830-Controls-Lower Control Parts-D310002-D310004/files/parts/PARTS-HB830S1-CTL-LWR-ANSI.jpgHB-830-Controls-Lower Control Parts-SN-D310002-D310004HB-830 Controls-Lower Control Parts SN: D310002 D310004Hy-Brid Lifts HB-830 Controls-Lower Control Parts SN: D310002 D310004LanguageParts_Component_TypeControls-Lower Control PartsParts_Model_NumberHB-830Product_CertificationsProduct_FAQ_Lookup_IDsProduct_Lookup_KeyHB-830-enProduct_MobilityProduct_Serial_Number_RangeD310002-D310004Product_Specification_CategoryProduct_StatusProduct_Working_Height_FeetProduct_Working_Height_MetersRegionRelated_ProductsVideo_Lookup_KeyCertificationLanguage TagsProduct Series842091/parts_components/HB-830-Controls-Main-Cable-Subparts-SN-D03-10002-D03-10091.htmHB-830-Controls-Main Cable Subparts-D03-10002-D03-10091/files/parts/PARTS-HBLGS1-CABLE.jpgHB-830-Controls-Main Cable Subparts-SN-D03-10002-D03-10091HB-830 Controls-Main Cable Subparts SN: D03-10002 D03-10091Hy-Brid Lifts HB-830 Controls-Main Cable Subparts SN: D03-10002 D03-10091LanguageParts_Component_TypeControls-Main Cable SubpartsParts_Model_NumberHB-830Product_CertificationsProduct_FAQ_Lookup_IDsProduct_Lookup_KeyHB-830-enProduct_MobilityProduct_Serial_Number_RangeD03-10002-D03-10091Product_Specification_CategoryProduct_StatusProduct_Working_Height_FeetProduct_Working_Height_MetersRegionRelated_ProductsVideo_Lookup_KeyCertificationLanguage TagsProduct Series842101/parts_components/HB-830-Controls-Main-Cable-Subparts-SN-D03-20000-D03-20003.htmHB-830-Controls-Main Cable Subparts-D03-20000-D03-20003/files/parts/PARTS-HBMDS3-CTL-CABLE.jpgHB-830-Controls-Main Cable Subparts-SN-D03-20000-D03-20003HB-830 Controls-Main Cable Subparts SN: D03-20000 D03-20003Hy-Brid Lifts HB-830 Controls-Main Cable Subparts SN: D03-20000 D03-20003LanguageParts_Component_TypeControls-Main Cable SubpartsParts_Model_NumberHB-830Product_CertificationsProduct_FAQ_Lookup_IDsProduct_Lookup_KeyHB-830-enProduct_MobilityProduct_Serial_Number_RangeD03-20000-D03-20003Product_Specification_CategoryProduct_StatusProduct_Working_Height_FeetProduct_Working_Height_MetersRegionRelated_ProductsVideo_Lookup_KeyCertificationLanguage TagsProduct Series842111/parts_components/HB-830-Controls-Main-Cable-Subparts-SN-D03-20004-D03-29999.htmHB-830-Controls-Main Cable Subparts-D03-20004-D03-29999/files/parts/PARTS-HBMDS3-CTL-CABLE.jpgHB-830-Controls-Main Cable Subparts-SN-D03-20004-D03-29999HB-830 Controls-Main Cable Subparts SN: D03-20004 D03-29999Hy-Brid Lifts HB-830 Controls-Main Cable Subparts SN: D03-20004 D03-29999LanguageParts_Component_TypeControls-Main Cable SubpartsParts_Model_NumberHB-830Product_CertificationsProduct_FAQ_Lookup_IDsProduct_Lookup_KeyHB-830-enProduct_MobilityProduct_Serial_Number_RangeD03-20004-D03-29999Product_Specification_CategoryProduct_StatusProduct_Working_Height_FeetProduct_Working_Height_MetersRegionRelated_ProductsVideo_Lookup_KeyCertificationLanguage TagsProduct Series842121/parts_components/HB-830-Controls-Main-Cable-Subparts-SN-D310002-D310004.htmHB-830-Controls-Main Cable Subparts-D310002-D310004/files/parts/PARTS-HBLGS1-CABLE.jpgHB-830-Controls-Main Cable Subparts-SN-D310002-D310004HB-830 Controls-Main Cable Subparts SN: D310002 D310004Hy-Brid Lifts HB-830 Controls-Main Cable Subparts SN: D310002 D310004LanguageParts_Component_TypeControls-Main Cable SubpartsParts_Model_NumberHB-830Product_CertificationsProduct_FAQ_Lookup_IDsProduct_Lookup_KeyHB-830-enProduct_MobilityProduct_Serial_Number_RangeD310002-D310004Product_Specification_CategoryProduct_StatusProduct_Working_Height_FeetProduct_Working_Height_MetersRegionRelated_ProductsVideo_Lookup_KeyCertificationLanguage TagsProduct Series842281/parts_components/HB-830-Controls-Master-Power-Switch-Subparts-SN-D03-20000-D03-20003.htmHB-830-Controls-Master Power Switch Subparts-D03-20000-D03-20003/files/parts/PARTS-HBMDS3-CTL-MSTRPWR.jpgHB-830-Controls-Master Power Switch Subparts-SN-D03-20000-D03-20003HB-830 Controls-Master Power Switch Subparts SN: D03-20000 D03-20003Hy-Brid Lifts HB-830 Controls-Master Power Switch Subparts SN: D03-20000 D03-20003LanguageParts_Component_TypeControls-Master Power Switch SubpartsParts_Model_NumberHB-830Product_CertificationsProduct_FAQ_Lookup_IDsProduct_Lookup_KeyHB-830-enProduct_MobilityProduct_Serial_Number_RangeD03-20000-D03-20003Product_Specification_CategoryProduct_StatusProduct_Working_Height_FeetProduct_Working_Height_MetersRegionRelated_ProductsVideo_Lookup_KeyCertificationLanguage TagsProduct Series842291/parts_components/HB-830-Controls-Master-Power-Switch-Subparts-SN-D03-20004-D03-29999.htmHB-830-Controls-Master Power Switch Subparts-D03-20004-D03-29999/files/parts/PARTS-HBMDS3-CTL-MSTRPWR.jpgHB-830-Controls-Master Power Switch Subparts-SN-D03-20004-D03-29999HB-830 Controls-Master Power Switch Subparts SN: D03-20004 D03-29999Hy-Brid Lifts HB-830 Controls-Master Power Switch Subparts SN: D03-20004 D03-29999LanguageParts_Component_TypeControls-Master Power Switch SubpartsParts_Model_NumberHB-830Product_CertificationsProduct_FAQ_Lookup_IDsProduct_Lookup_KeyHB-830-enProduct_MobilityProduct_Serial_Number_RangeD03-20004-D03-29999Product_Specification_CategoryProduct_StatusProduct_Working_Height_FeetProduct_Working_Height_MetersRegionRelated_ProductsVideo_Lookup_KeyCertificationLanguage TagsProduct Series842421/parts_components/HB-830-Controls-Selector-Switch-Subparts-SN-D03-20000-D03-20003.htmHB-830-Controls-Selector Switch Subparts-D03-20000-D03-20003/files/parts/PARTS-MULT-ELEC-002C-KIT.jpgHB-830-Controls-Selector Switch Subparts-SN-D03-20000-D03-20003HB-830 Controls-Selector Switch Subparts SN: D03-20000 D03-20003Hy-Brid Lifts HB-830 Controls-Selector Switch Subparts SN: D03-20000 D03-20003LanguageParts_Component_TypeControls-Selector Switch SubpartsParts_Model_NumberHB-830Product_CertificationsProduct_FAQ_Lookup_IDsProduct_Lookup_KeyHB-830-enProduct_MobilityProduct_Serial_Number_RangeD03-20000-D03-20003Product_Specification_CategoryProduct_StatusProduct_Working_Height_FeetProduct_Working_Height_MetersRegionRelated_ProductsVideo_Lookup_KeyCertificationLanguage TagsProduct Series842431/parts_components/HB-830-Controls-Selector-Switch-Subparts-SN-D03-20004-D03-29999.htmHB-830-Controls-Selector Switch Subparts-D03-20004-D03-29999/files/parts/PARTS-MULT-ELEC-002C-KIT.jpgHB-830-Controls-Selector Switch Subparts-SN-D03-20004-D03-29999HB-830 Controls-Selector Switch Subparts SN: D03-20004 D03-29999Hy-Brid Lifts HB-830 Controls-Selector Switch Subparts SN: D03-20004 D03-29999LanguageParts_Component_TypeControls-Selector Switch SubpartsParts_Model_NumberHB-830Product_CertificationsProduct_FAQ_Lookup_IDsProduct_Lookup_KeyHB-830-enProduct_MobilityProduct_Serial_Number_RangeD03-20004-D03-29999Product_Specification_CategoryProduct_StatusProduct_Working_Height_FeetProduct_Working_Height_MetersRegionRelated_ProductsVideo_Lookup_KeyCertificationLanguage TagsProduct Series842641/parts_components/HB-830-Controls-Upper-Control-Parts-SN-D03-10002-D03-10091.htmHB-830-Controls-Upper Control Parts-D03-10002-D03-10091/files/parts/PARTS-HB830S1-CTL-UPR-ANSI.jpgHB-830-Controls-Upper Control Parts-SN-D03-10002-D03-10091HB-830 Controls-Upper Control Parts SN: D03-10002 D03-10091Hy-Brid Lifts HB-830 Controls-Upper Control Parts SN: D03-10002 D03-10091LanguageParts_Component_TypeControls-Upper Control PartsParts_Model_NumberHB-830Product_CertificationsProduct_FAQ_Lookup_IDsProduct_Lookup_KeyHB-830-enProduct_MobilityProduct_Serial_Number_RangeD03-10002-D03-10091Product_Specification_CategoryProduct_StatusProduct_Working_Height_FeetProduct_Working_Height_MetersRegionRelated_ProductsVideo_Lookup_KeyCertificationLanguage TagsProduct Series842651/parts_components/HB-830-Controls-Upper-Control-Parts-SN-D03-20000-D03-20003.htmHB-830-Controls-Upper Control Parts-D03-20000-D03-20003/files/parts/PARTS-HBMDS1-CTL-UPR.jpgHB-830-Controls-Upper Control Parts-SN-D03-20000-D03-20003HB-830 Controls-Upper Control Parts SN: D03-20000 D03-20003Hy-Brid Lifts HB-830 Controls-Upper Control Parts SN: D03-20000 D03-20003LanguageParts_Component_TypeControls-Upper Control PartsParts_Model_NumberHB-830Product_CertificationsProduct_FAQ_Lookup_IDsProduct_Lookup_KeyHB-830-enProduct_MobilityProduct_Serial_Number_RangeD03-20000-D03-20003Product_Specification_CategoryProduct_StatusProduct_Working_Height_FeetProduct_Working_Height_MetersRegionRelated_ProductsVideo_Lookup_KeyCertificationLanguage TagsProduct Series842661/parts_components/HB-830-Controls-Upper-Control-Parts-SN-D03-20004-D03-29999.htmHB-830-Controls-Upper Control Parts-D03-20004-D03-29999/files/parts/PARTS-HBMDS3-CTL-UPR.jpgHB-830-Controls-Upper Control Parts-SN-D03-20004-D03-29999HB-830 Controls-Upper Control Parts SN: D03-20004 D03-29999Hy-Brid Lifts HB-830 Controls-Upper Control Parts SN: D03-20004 D03-29999LanguageParts_Component_TypeControls-Upper Control PartsParts_Model_NumberHB-830Product_CertificationsProduct_FAQ_Lookup_IDsProduct_Lookup_KeyHB-830-enProduct_MobilityProduct_Serial_Number_RangeD03-20004-D03-29999Product_Specification_CategoryProduct_StatusProduct_Working_Height_FeetProduct_Working_Height_MetersRegionRelated_ProductsVideo_Lookup_KeyCertificationLanguage TagsProduct Series842671/parts_components/HB-830-Controls-Upper-Control-Parts-SN-D310002-D310004.htmHB-830-Controls-Upper Control Parts-D310002-D310004/files/parts/PARTS-HB830S1-CTL-UPR-ANSI.jpgHB-830-Controls-Upper Control Parts-SN-D310002-D310004HB-830 Controls-Upper Control Parts SN: D310002 D310004Hy-Brid Lifts HB-830 Controls-Upper Control Parts SN: D310002 D310004LanguageParts_Component_TypeControls-Upper Control PartsParts_Model_NumberHB-830Product_CertificationsProduct_FAQ_Lookup_IDsProduct_Lookup_KeyHB-830-enProduct_MobilityProduct_Serial_Number_RangeD310002-D310004Product_Specification_CategoryProduct_StatusProduct_Working_Height_FeetProduct_Working_Height_MetersRegionRelated_ProductsVideo_Lookup_KeyCertificationLanguage TagsProduct Series842951/parts_components/HB-830-Decals-SN-D03-10002-D03-10091.htmHB-830-Decals-D03-10002-D03-10091/files/parts/PARTS-HB830S1-DECALS-ANSI.jpgHB-830-Decals-SN-D03-10002-D03-10091HB-830 Decals SN: D03-10002 D03-10091Hy-Brid Lifts HB-830 Decals SN: D03-10002 D03-10091LanguageParts_Component_TypeDecalsParts_Model_NumberHB-830Product_CertificationsProduct_FAQ_Lookup_IDsProduct_Lookup_KeyHB-830-enProduct_MobilityProduct_Serial_Number_RangeD03-10002-D03-10091Product_Specification_CategoryProduct_StatusProduct_Working_Height_FeetProduct_Working_Height_MetersRegionRelated_ProductsVideo_Lookup_KeyCertificationLanguage TagsProduct Series842961/parts_components/HB-830-Decals-SN-D03-20000-D03-20003.htmHB-830-Decals-D03-20000-D03-20003/files/parts/PARTS-HBMDS2-DECALS-8-ANSI.jpgHB-830-Decals-SN-D03-20000-D03-20003HB-830 Decals SN: D03-20000 D03-20003Hy-Brid Lifts HB-830 Decals SN: D03-20000 D03-20003LanguageParts_Component_TypeDecalsParts_Model_NumberHB-830Product_CertificationsProduct_FAQ_Lookup_IDsProduct_Lookup_KeyHB-830-enProduct_MobilityProduct_Serial_Number_RangeD03-20000-D03-20003Product_Specification_CategoryProduct_StatusProduct_Working_Height_FeetProduct_Working_Height_MetersRegionRelated_ProductsVideo_Lookup_KeyCertificationLanguage TagsProduct Series842971/parts_components/HB-830-Decals-SN-D03-20004-D03-29999.htmHB-830-Decals-D03-20004-D03-29999/files/parts/PARTS-HBMDS2-DECALS-8-ANSI.jpgHB-830-Decals-SN-D03-20004-D03-29999HB-830 Decals SN: D03-20004 D03-29999Hy-Brid Lifts HB-830 Decals SN: D03-20004 D03-29999LanguageParts_Component_TypeDecalsParts_Model_NumberHB-830Product_CertificationsProduct_FAQ_Lookup_IDsProduct_Lookup_KeyHB-830-enProduct_MobilityProduct_Serial_Number_RangeD03-20004-D03-29999Product_Specification_CategoryProduct_StatusProduct_Working_Height_FeetProduct_Working_Height_MetersRegionRelated_ProductsVideo_Lookup_KeyCertificationLanguage TagsProduct Series842981/parts_components/HB-830-Decals-SN-D310002-D310004.htmHB-830-Decals-D310002-D310004/files/parts/PARTS-HB830S1-DECALS-ANSI.jpgHB-830-Decals-SN-D310002-D310004HB-830 Decals SN: D310002 D310004Hy-Brid Lifts HB-830 Decals SN: D310002 D310004LanguageParts_Component_TypeDecalsParts_Model_NumberHB-830Product_CertificationsProduct_FAQ_Lookup_IDsProduct_Lookup_KeyHB-830-enProduct_MobilityProduct_Serial_Number_RangeD310002-D310004Product_Specification_CategoryProduct_StatusProduct_Working_Height_FeetProduct_Working_Height_MetersRegionRelated_ProductsVideo_Lookup_KeyCertificationLanguage TagsProduct Series843301/parts_components/HB-830-Options-Misc-SN-D03-10002-D03-10091.htmHB-830-Options-Misc-D03-10002-D03-10091/files/parts/PARTS-HB830S1-MISC.jpgHB-830-Options-Misc-SN-D03-10002-D03-10091HB-830 Options-Misc SN: D03-10002 D03-10091Hy-Brid Lifts HB-830 Options-Misc SN: D03-10002 D03-10091LanguageParts_Component_TypeOptions-MiscParts_Model_NumberHB-830Product_CertificationsProduct_FAQ_Lookup_IDsProduct_Lookup_KeyHB-830-enProduct_MobilityProduct_Serial_Number_RangeD03-10002-D03-10091Product_Specification_CategoryProduct_StatusProduct_Working_Height_FeetProduct_Working_Height_MetersRegionRelated_ProductsVideo_Lookup_KeyCertificationLanguage TagsProduct Series843311/parts_components/HB-830-Options-Misc-SN-D03-20000-D03-20003.htmHB-830-Options-Misc-D03-20000-D03-20003/files/parts/PARTS-HBMDS2-MISC.jpgHB-830-Options-Misc-SN-D03-20000-D03-20003HB-830 Options-Misc SN: D03-20000 D03-20003Hy-Brid Lifts HB-830 Options-Misc SN: D03-20000 D03-20003LanguageParts_Component_TypeOptions-MiscParts_Model_NumberHB-830Product_CertificationsProduct_FAQ_Lookup_IDsProduct_Lookup_KeyHB-830-enProduct_MobilityProduct_Serial_Number_RangeD03-20000-D03-20003Product_Specification_CategoryProduct_StatusProduct_Working_Height_FeetProduct_Working_Height_MetersRegionRelated_ProductsVideo_Lookup_KeyCertificationLanguage TagsProduct Series843321/parts_components/HB-830-Options-Misc-SN-D03-20004-D03-29999.htmHB-830-Options-Misc-D03-20004-D03-29999/files/parts/PARTS-HB830S3R-MISC.jpgHB-830-Options-Misc-SN-D03-20004-D03-29999HB-830 Options-Misc SN: D03-20004 D03-29999Hy-Brid Lifts HB-830 Options-Misc SN: D03-20004 D03-29999LanguageParts_Component_TypeOptions-MiscParts_Model_NumberHB-830Product_CertificationsProduct_FAQ_Lookup_IDsProduct_Lookup_KeyHB-830-enProduct_MobilityProduct_Serial_Number_RangeD03-20004-D03-29999Product_Specification_CategoryProduct_StatusProduct_Working_Height_FeetProduct_Working_Height_MetersRegionRelated_ProductsVideo_Lookup_KeyCertificationLanguage TagsProduct Series843331/parts_components/HB-830-Options-Misc-SN-D310002-D310004.htmHB-830-Options-Misc-D310002-D310004/files/parts/PARTS-HB830S1-MISC.jpgHB-830-Options-Misc-SN-D310002-D310004HB-830 Options-Misc SN: D310002 D310004Hy-Brid Lifts HB-830 Options-Misc SN: D310002 D310004LanguageParts_Component_TypeOptions-MiscParts_Model_NumberHB-830Product_CertificationsProduct_FAQ_Lookup_IDsProduct_Lookup_KeyHB-830-enProduct_MobilityProduct_Serial_Number_RangeD310002-D310004Product_Specification_CategoryProduct_StatusProduct_Working_Height_FeetProduct_Working_Height_MetersRegionRelated_ProductsVideo_Lookup_KeyCertificationLanguage TagsProduct Series843601/parts_components/HB-830-Platform-Rails-SN-D03-10002-D03-10091.htmHB-830-Platform-Rails-D03-10002-D03-10091/files/parts/PARTS-HB830S1-RAILS.jpgHB-830-Platform-Rails-SN-D03-10002-D03-10091HB-830 Platform-Rails SN: D03-10002 D03-10091Hy-Brid Lifts HB-830 Platform-Rails SN: D03-10002 D03-10091LanguageParts_Component_TypePlatform-RailsParts_Model_NumberHB-830Product_CertificationsProduct_FAQ_Lookup_IDsProduct_Lookup_KeyHB-830-enProduct_MobilityProduct_Serial_Number_RangeD03-10002-D03-10091Product_Specification_CategoryProduct_StatusProduct_Working_Height_FeetProduct_Working_Height_MetersRegionRelated_ProductsVideo_Lookup_KeyCertificationLanguage TagsProduct Series843611/parts_components/HB-830-Platform-Rails-SN-D03-20000-D03-20003.htmHB-830-Platform-Rails-D03-20000-D03-20003/files/parts/PARTS-HBMDS3-RAILS.jpgHB-830-Platform-Rails-SN-D03-20000-D03-20003HB-830 Platform-Rails SN: D03-20000 D03-20003Hy-Brid Lifts HB-830 Platform-Rails SN: D03-20000 D03-20003LanguageParts_Component_TypePlatform-RailsParts_Model_NumberHB-830Product_CertificationsProduct_FAQ_Lookup_IDsProduct_Lookup_KeyHB-830-enProduct_MobilityProduct_Serial_Number_RangeD03-20000-D03-20003Product_Specification_CategoryProduct_StatusProduct_Working_Height_FeetProduct_Working_Height_MetersRegionRelated_ProductsVideo_Lookup_KeyCertificationLanguage TagsProduct Series843621/parts_components/HB-830-Platform-Rails-SN-D03-20004-D03-29999.htmHB-830-Platform-Rails-D03-20004-D03-29999/files/parts/PARTS-HBMDS3-RAILS.jpgHB-830-Platform-Rails-SN-D03-20004-D03-29999HB-830 Platform-Rails SN: D03-20004 D03-29999Hy-Brid Lifts HB-830 Platform-Rails SN: D03-20004 D03-29999LanguageParts_Component_TypePlatform-RailsParts_Model_NumberHB-830Product_CertificationsProduct_FAQ_Lookup_IDsProduct_Lookup_KeyHB-830-enProduct_MobilityProduct_Serial_Number_RangeD03-20004-D03-29999Product_Specification_CategoryProduct_StatusProduct_Working_Height_FeetProduct_Working_Height_MetersRegionRelated_ProductsVideo_Lookup_KeyCertificationLanguage TagsProduct Series843631/parts_components/HB-830-Platform-Rails-SN-D310002-D310004.htmHB-830-Platform-Rails-D310002-D310004/files/parts/PARTS-HB830S1-RAILS.jpgHB-830-Platform-Rails-SN-D310002-D310004HB-830 Platform-Rails SN: D310002 D310004Hy-Brid Lifts HB-830 Platform-Rails SN: D310002 D310004LanguageParts_Component_TypePlatform-RailsParts_Model_NumberHB-830Product_CertificationsProduct_FAQ_Lookup_IDsProduct_Lookup_KeyHB-830-enProduct_MobilityProduct_Serial_Number_RangeD310002-D310004Product_Specification_CategoryProduct_StatusProduct_Working_Height_FeetProduct_Working_Height_MetersRegionRelated_ProductsVideo_Lookup_KeyCertificationLanguage TagsProduct Series843851/parts_components/HB-830-Scissors-Parts-SN-D03-10002-D03-10091.htmHB-830-Scissors Parts-D03-10002-D03-10091/files/parts/PARTS-HB830S1-SCIS.jpgHB-830-Scissors Parts-SN-D03-10002-D03-10091HB-830 Scissors Parts SN: D03-10002 D03-10091Hy-Brid Lifts HB-830 Scissors Parts SN: D03-10002 D03-10091LanguageParts_Component_TypeScissors PartsParts_Model_NumberHB-830Product_CertificationsProduct_FAQ_Lookup_IDsProduct_Lookup_KeyHB-830-enProduct_MobilityProduct_Serial_Number_RangeD03-10002-D03-10091Product_Specification_CategoryProduct_StatusProduct_Working_Height_FeetProduct_Working_Height_MetersRegionRelated_ProductsVideo_Lookup_KeyCertificationLanguage TagsProduct Series843861/parts_components/HB-830-Scissors-Parts-SN-D03-20000-D03-20003.htmHB-830-Scissors Parts-D03-20000-D03-20003/files/parts/PARTS-HBMDS2-SCIS-8.jpgHB-830-Scissors Parts-SN-D03-20000-D03-20003HB-830 Scissors Parts SN: D03-20000 D03-20003Hy-Brid Lifts HB-830 Scissors Parts SN: D03-20000 D03-20003LanguageParts_Component_TypeScissors PartsParts_Model_NumberHB-830Product_CertificationsProduct_FAQ_Lookup_IDsProduct_Lookup_KeyHB-830-enProduct_MobilityProduct_Serial_Number_RangeD03-20000-D03-20003Product_Specification_CategoryProduct_StatusProduct_Working_Height_FeetProduct_Working_Height_MetersRegionRelated_ProductsVideo_Lookup_KeyCertificationLanguage TagsProduct Series843871/parts_components/HB-830-Scissors-Parts-SN-D03-20004-D03-29999.htmHB-830-Scissors Parts-D03-20004-D03-29999/files/parts/PARTS-HBMDS2-SCIS-8.jpgHB-830-Scissors Parts-SN-D03-20004-D03-29999HB-830 Scissors Parts SN: D03-20004 D03-29999Hy-Brid Lifts HB-830 Scissors Parts SN: D03-20004 D03-29999LanguageParts_Component_TypeScissors PartsParts_Model_NumberHB-830Product_CertificationsProduct_FAQ_Lookup_IDsProduct_Lookup_KeyHB-830-enProduct_MobilityProduct_Serial_Number_RangeD03-20004-D03-29999Product_Specification_CategoryProduct_StatusProduct_Working_Height_FeetProduct_Working_Height_MetersRegionRelated_ProductsVideo_Lookup_KeyCertificationLanguage TagsProduct Series843881/parts_components/HB-830-Scissors-Parts-SN-D310002-D310004.htmHB-830-Scissors Parts-D310002-D310004/files/parts/PARTS-HB830S1-SCIS.jpgHB-830-Scissors Parts-SN-D310002-D310004HB-830 Scissors Parts SN: D310002 D310004Hy-Brid Lifts HB-830 Scissors Parts SN: D310002 D310004LanguageParts_Component_TypeScissors PartsParts_Model_NumberHB-830Product_CertificationsProduct_FAQ_Lookup_IDsProduct_Lookup_KeyHB-830-enProduct_MobilityProduct_Serial_Number_RangeD310002-D310004Product_Specification_CategoryProduct_StatusProduct_Working_Height_FeetProduct_Working_Height_MetersRegionRelated_ProductsVideo_Lookup_KeyCertificationLanguage TagsProduct Series844101/parts_components/HB-830-Scissors-Cylinder-Subparts-SN-D03-10002-D03-10091.htmHB-830-Scissors-Cylinder Subparts-D03-10002-D03-10091/files/parts/PARTS-HB830S1-CYL-ANSI.jpgHB-830-Scissors-Cylinder Subparts-SN-D03-10002-D03-10091HB-830 Scissors-Cylinder Subparts SN: D03-10002 D03-10091Hy-Brid Lifts HB-830 Scissors-Cylinder Subparts SN: D03-10002 D03-10091LanguageParts_Component_TypeScissors-Cylinder SubpartsParts_Model_NumberHB-830Product_CertificationsProduct_FAQ_Lookup_IDsProduct_Lookup_KeyHB-830-enProduct_MobilityProduct_Serial_Number_RangeD03-10002-D03-10091Product_Specification_CategoryProduct_StatusProduct_Working_Height_FeetProduct_Working_Height_MetersRegionRelated_ProductsVideo_Lookup_KeyCertificationLanguage TagsProduct Series844111/parts_components/HB-830-Scissors-Cylinder-Subparts-SN-D03-20000-D03-20003.htmHB-830-Scissors-Cylinder Subparts-D03-20000-D03-20003/files/parts/PARTS-HBMDS3-SCIS-CYL-1230.jpgHB-830-Scissors-Cylinder Subparts-SN-D03-20000-D03-20003HB-830 Scissors-Cylinder Subparts SN: D03-20000 D03-20003Hy-Brid Lifts HB-830 Scissors-Cylinder Subparts SN: D03-20000 D03-20003LanguageParts_Component_TypeScissors-Cylinder SubpartsParts_Model_NumberHB-830Product_CertificationsProduct_FAQ_Lookup_IDsProduct_Lookup_KeyHB-830-enProduct_MobilityProduct_Serial_Number_RangeD03-20000-D03-20003Product_Specification_CategoryProduct_StatusProduct_Working_Height_FeetProduct_Working_Height_MetersRegionRelated_ProductsVideo_Lookup_KeyCertificationLanguage TagsProduct Series844121/parts_components/HB-830-Scissors-Cylinder-Subparts-SN-D03-20004-D03-29999.htmHB-830-Scissors-Cylinder Subparts-D03-20004-D03-29999/files/parts/PARTS-HBMDS3-SCIS-CYL-1230.jpgHB-830-Scissors-Cylinder Subparts-SN-D03-20004-D03-29999HB-830 Scissors-Cylinder Subparts SN: D03-20004 D03-29999Hy-Brid Lifts HB-830 Scissors-Cylinder Subparts SN: D03-20004 D03-29999LanguageParts_Component_TypeScissors-Cylinder SubpartsParts_Model_NumberHB-830Product_CertificationsProduct_FAQ_Lookup_IDsProduct_Lookup_KeyHB-830-enProduct_MobilityProduct_Serial_Number_RangeD03-20004-D03-29999Product_Specification_CategoryProduct_StatusProduct_Working_Height_FeetProduct_Working_Height_MetersRegionRelated_ProductsVideo_Lookup_KeyCertificationLanguage TagsProduct Series844131/parts_components/HB-830-Scissors-Cylinder-Subparts-SN-D310002-D310004.htmHB-830-Scissors-Cylinder Subparts-D310002-D310004/files/parts/PARTS-HB830S1-CYL-ANSI.jpgHB-830-Scissors-Cylinder Subparts-SN-D310002-D310004HB-830 Scissors-Cylinder Subparts SN: D310002 D310004Hy-Brid Lifts HB-830 Scissors-Cylinder Subparts SN: D310002 D310004LanguageParts_Component_TypeScissors-Cylinder SubpartsParts_Model_NumberHB-830Product_CertificationsProduct_FAQ_Lookup_IDsProduct_Lookup_KeyHB-830-enProduct_MobilityProduct_Serial_Number_RangeD310002-D310004Product_Specification_CategoryProduct_StatusProduct_Working_Height_FeetProduct_Working_Height_MetersRegionRelated_ProductsVideo_Lookup_KeyCertificationLanguage TagsProduct Series735111/product_specifications/en/HB-830-en-Specification-Floor-Loading-Maximum-Wheel-Load.htm151HB-830-enMaximum Wheel Load166.6 psi1148.7 kPa19HB-830-en Specification Floor Loading Maximum Wheel LoadLanguageenParts_Component_TypeParts_Model_NumberProduct_CertificationsProduct_FAQ_Lookup_IDsProduct_Lookup_KeyProduct_MobilityProduct_Serial_Number_RangeProduct_Specification_CategoryFloor LoadingProduct_StatusProduct_Working_Height_FeetProduct_Working_Height_MetersRegionRelated_ProductsVideo_Lookup_KeyCertificationLanguage TagsModel Number735101/product_specifications/en/HB-830-en-Specification-Floor-Loading-Minimum-Wheel-Load.htm150HB-830-enMinimum Wheel Load112.6 psi776.3 kPa18HB-830-en Specification Floor Loading Minimum Wheel LoadLanguageenParts_Component_TypeParts_Model_NumberProduct_CertificationsProduct_FAQ_Lookup_IDsProduct_Lookup_KeyProduct_MobilityProduct_Serial_Number_RangeProduct_Specification_CategoryFloor LoadingProduct_StatusProduct_Working_Height_FeetProduct_Working_Height_MetersRegionRelated_ProductsVideo_Lookup_KeyCertificationLanguage TagsModel Number734971/product_specifications/en/HB-830-en-Specification-Heights-Ground-Clearance-Lowered.htm137HB-830-enGround Clearance Lowered2.9 in7.3 cm5HB-830-en Specification Heights Ground Clearance LoweredLanguageenParts_Component_TypeParts_Model_NumberProduct_CertificationsProduct_FAQ_Lookup_IDsProduct_Lookup_KeyProduct_MobilityProduct_Serial_Number_RangeProduct_Specification_CategoryHeightsProduct_StatusProduct_Working_Height_FeetProduct_Working_Height_MetersRegionRelated_ProductsVideo_Lookup_KeyCertificationLanguage TagsModel Number734961/product_specifications/en/HB-830-en-Specification-Heights-Ground-Clearance-Raised.htm136HB-830-enGround Clearance Raised0.5 in1.3 cm4HB-830-en Specification Heights Ground Clearance RaisedLanguageenParts_Component_TypeParts_Model_NumberProduct_CertificationsProduct_FAQ_Lookup_IDsProduct_Lookup_KeyProduct_MobilityProduct_Serial_Number_RangeProduct_Specification_CategoryHeightsProduct_StatusProduct_Working_Height_FeetProduct_Working_Height_MetersRegionRelated_ProductsVideo_Lookup_KeyCertificationLanguage TagsModel Number734941/product_specifications/en/HB-830-en-Specification-Heights-Platform-Height-Max.htm134HB-830-enPlatform Height Max (indoors)8 ft2.4 m2HB-830-en Specification Heights Platform Height MaxLanguageenParts_Component_TypeParts_Model_NumberProduct_CertificationsProduct_FAQ_Lookup_IDsProduct_Lookup_KeyProduct_MobilityProduct_Serial_Number_RangeProduct_Specification_CategoryHeightsProduct_StatusProduct_Working_Height_FeetProduct_Working_Height_MetersRegionRelated_ProductsVideo_Lookup_KeyCertificationLanguage TagsModel Number734951/product_specifications/en/HB-830-en-Specification-Heights-Platform-Height-Min.htm135HB-830-enPlatform Height Min20 in50.8 cm3HB-830-en Specification Heights Platform Height MinLanguageenParts_Component_TypeParts_Model_NumberProduct_CertificationsProduct_FAQ_Lookup_IDsProduct_Lookup_KeyProduct_MobilityProduct_Serial_Number_RangeProduct_Specification_CategoryHeightsProduct_StatusProduct_Working_Height_FeetProduct_Working_Height_MetersRegionRelated_ProductsVideo_Lookup_KeyCertificationLanguage TagsModel Number734931/product_specifications/en/HB-830-en-Specification-Heights-Working-Height.htm133HB-830-enWorking Height (indoors)14 ft4.3 m1HB-830-en Specification Heights Working HeightLanguageenParts_Component_TypeParts_Model_NumberProduct_CertificationsProduct_FAQ_Lookup_IDsProduct_Lookup_KeyProduct_MobilityProduct_Serial_Number_RangeProduct_Specification_CategoryHeightsProduct_StatusProduct_Working_Height_FeetProduct_Working_Height_MetersRegionRelated_ProductsVideo_Lookup_KeyCertificationLanguage TagsModel Number734981/product_specifications/en/HB-830-en-Specification-Measurements-Overall-Length.htm138HB-830-enOverall Length56 in1.42 m6HB-830-en Specification Measurements Overall LengthLanguageenParts_Component_TypeParts_Model_NumberProduct_CertificationsProduct_FAQ_Lookup_IDsProduct_Lookup_KeyProduct_MobilityProduct_Serial_Number_RangeProduct_Specification_CategoryMeasurementsProduct_StatusProduct_Working_Height_FeetProduct_Working_Height_MetersRegionRelated_ProductsVideo_Lookup_KeyCertificationLanguage TagsModel Number734991/product_specifications/en/HB-830-en-Specification-Measurements-Overall-Width.htm139HB-830-enOverall Width30 in0.76 m7HB-830-en Specification Measurements Overall WidthLanguageenParts_Component_TypeParts_Model_NumberProduct_CertificationsProduct_FAQ_Lookup_IDsProduct_Lookup_KeyProduct_MobilityProduct_Serial_Number_RangeProduct_Specification_CategoryMeasurementsProduct_StatusProduct_Working_Height_FeetProduct_Working_Height_MetersRegionRelated_ProductsVideo_Lookup_KeyCertificationLanguage TagsModel Number735031/product_specifications/en/HB-830-en-Specification-Measurements-Platform-Extension.htm143HB-830-enPlatform Extension30 in0.76 m11HB-830-en Specification Measurements Platform ExtensionLanguageenParts_Component_TypeParts_Model_NumberProduct_CertificationsProduct_FAQ_Lookup_IDsProduct_Lookup_KeyProduct_MobilityProduct_Serial_Number_RangeProduct_Specification_CategoryMeasurementsProduct_StatusProduct_Working_Height_FeetProduct_Working_Height_MetersRegionRelated_ProductsVideo_Lookup_KeyCertificationLanguage TagsModel Number735011/product_specifications/en/HB-830-en-Specification-Measurements-Platform-Length.htm141HB-830-enPlatform Length53 in1.35 m9HB-830-en Specification Measurements Platform LengthLanguageenParts_Component_TypeParts_Model_NumberProduct_CertificationsProduct_FAQ_Lookup_IDsProduct_Lookup_KeyProduct_MobilityProduct_Serial_Number_RangeProduct_Specification_CategoryMeasurementsProduct_StatusProduct_Working_Height_FeetProduct_Working_Height_MetersRegionRelated_ProductsVideo_Lookup_KeyCertificationLanguage TagsModel Number735021/product_specifications/en/HB-830-en-Specification-Measurements-Platform-Width.htm142HB-830-enPlatform Width25 in0.64 m10HB-830-en Specification Measurements Platform WidthLanguageenParts_Component_TypeParts_Model_NumberProduct_CertificationsProduct_FAQ_Lookup_IDsProduct_Lookup_KeyProduct_MobilityProduct_Serial_Number_RangeProduct_Specification_CategoryMeasurementsProduct_StatusProduct_Working_Height_FeetProduct_Working_Height_MetersRegionRelated_ProductsVideo_Lookup_KeyCertificationLanguage TagsModel Number735001/product_specifications/en/HB-830-en-Specification-Measurements-Stowed-Height.htm140HB-830-enStowed Height64 in1.62 m8HB-830-en Specification Measurements Stowed HeightLanguageenParts_Component_TypeParts_Model_NumberProduct_CertificationsProduct_FAQ_Lookup_IDsProduct_Lookup_KeyProduct_MobilityProduct_Serial_Number_RangeProduct_Specification_CategoryMeasurementsProduct_StatusProduct_Working_Height_FeetProduct_Working_Height_MetersRegionRelated_ProductsVideo_Lookup_KeyCertificationLanguage TagsModel Number735051/product_specifications/en/HB-830-en-Specification-Performance-Extension-Capacity.htm145HB-830-enExtension Capacity250 lbs113.4 kg13HB-830-en Specification Performance Extension CapacityLanguageenParts_Component_TypeParts_Model_NumberProduct_CertificationsProduct_FAQ_Lookup_IDsProduct_Lookup_KeyProduct_MobilityProduct_Serial_Number_RangeProduct_Specification_CategoryPerformanceProduct_StatusProduct_Working_Height_FeetProduct_Working_Height_MetersRegionRelated_ProductsVideo_Lookup_KeyCertificationLanguage TagsModel Number735081/product_specifications/en/HB-830-en-Specification-Performance-Inside-Turning-Radius.htm148HB-830-enInside Turning RadiusZeroZero16HB-830-en Specification Performance Inside Turning RadiusLanguageenParts_Component_TypeParts_Model_NumberProduct_CertificationsProduct_FAQ_Lookup_IDsProduct_Lookup_KeyProduct_MobilityProduct_Serial_Number_RangeProduct_Specification_CategoryPerformanceProduct_StatusProduct_Working_Height_FeetProduct_Working_Height_MetersRegionRelated_ProductsVideo_Lookup_KeyCertificationLanguage TagsModel Number735091/product_specifications/en/HB-830-en-Specification-Performance-Lift-Speed-UpDown.htm149HB-830-enLift Speed Up/Down18/16 sec18/16 sec17HB-830-en Specification Performance Lift Speed Up/DownLanguageenParts_Component_TypeParts_Model_NumberProduct_CertificationsProduct_FAQ_Lookup_IDsProduct_Lookup_KeyProduct_MobilityProduct_Serial_Number_RangeProduct_Specification_CategoryPerformanceProduct_StatusProduct_Working_Height_FeetProduct_Working_Height_MetersRegionRelated_ProductsVideo_Lookup_KeyCertificationLanguage TagsModel Number735041/product_specifications/en/HB-830-en-Specification-Performance-Platform-Capacity.htm144HB-830-enPlatform Capacity550 lbs249.5 kg12HB-830-en Specification Performance Platform CapacityLanguageenParts_Component_TypeParts_Model_NumberProduct_CertificationsProduct_FAQ_Lookup_IDsProduct_Lookup_KeyProduct_MobilityProduct_Serial_Number_RangeProduct_Specification_CategoryPerformanceProduct_StatusProduct_Working_Height_FeetProduct_Working_Height_MetersRegionRelated_ProductsVideo_Lookup_KeyCertificationLanguage TagsModel Number735071/product_specifications/en/HB-830-en-Specification-Performance-Rated-Occupancy.htm147HB-830-enRated Occupancy2 Person(s)2 Person(s)15HB-830-en Specification Performance Rated OccupancyLanguageenParts_Component_TypeParts_Model_NumberProduct_CertificationsProduct_FAQ_Lookup_IDsProduct_Lookup_KeyProduct_MobilityProduct_Serial_Number_RangeProduct_Specification_CategoryPerformanceProduct_StatusProduct_Working_Height_FeetProduct_Working_Height_MetersRegionRelated_ProductsVideo_Lookup_KeyCertificationLanguage TagsModel Number735061/product_specifications/en/HB-830-en-Specification-Performance-Weight.htm146HB-830-enWeight1484 lbs673.1 kg14HB-830-en Specification Performance WeightLanguageenParts_Component_TypeParts_Model_NumberProduct_CertificationsProduct_FAQ_Lookup_IDsProduct_Lookup_KeyProduct_MobilityProduct_Serial_Number_RangeProduct_Specification_CategoryPerformanceProduct_StatusProduct_Working_Height_FeetProduct_Working_Height_MetersRegionRelated_ProductsVideo_Lookup_KeyCertificationLanguage TagsModel Number79415/Video_Library/Hy-Brid-Lifts-by-Custom-Equipment.htm01https://www.youtube.com/embed/zi_N-UHKdVc?rel=0/files/thumbnails/Video-Thumbnails/Hy-Brid-Lifts-by-CE.pngHy-Brid Lifts by Custom Equipment<p>Custom Equipment, LLC is a scissor lift manufacturing company located in Richfield, WI, about 30 miles north of Milwaukee. The company was started in 1981 by Steve and Lynn Kissinger as a small fabrication and welding repair shop. From 1981 to 2003, Custom Equipment made lifts for use in the death care industry. These casket lifts had to be strong enough to lift 1,000 lbs but light enough to not damage mausoleum floors, and so in 2004, Hy-Brid Lifts were born. These unique scissor lifts were launched after the Kissingers saw a need for smaller and lighter work platforms in the construction industry. Since then, Hy-Brid Lifts has grown to be a globally recognized name in low-level aerial work platforms with distributors around the globe.</p> <p>Hy-Brid Lifts are the <a href="/ansi/Scissor-Lifts.htm" linktype="2" target="_self">lightest scissor lifts</a> in the industry with <a href="/ansi/GoHyer/2021/What-is-Floor-Load-and-how-do-Scissor-Lifts-Stack-Up.htm" linktype="2" target="_self">floor loading pressures</a> as low as 62.7 PSI. As a result, they don't cause damage to finished or sensitive flooring, like mezzanines, data centers, offices, and hospitals with raised floors, allowing Hy-Brid Lifts to be used on the jobsite from start to finish. These compact scissors easily fit through standard doorways and in personnel elevators for efficient transport. They also offer full swing gates and low step-in heights to make loading materials safer and easier for operators. Combined with superior maneuverability, all-steel construction, and powder coat paint, these scissor lifts are highly durable and rental tough.</p> <p>The <a href="/ansi/Scissor-Lifts/Push-Around-Series.htm" linktype="2" target="_self">Push-Around Series</a> includes small chassis lifts that are safer than ladders and more efficient than scaffolding. Due to their compact design, they're easy to maneuver into position and have full locking casters. Standard AGM batteries mean these scissor lifts require very little maintenance.</p> <p>The <a href="/ansi/Scissor-Lifts/Zero-TurnSeries.htm" linktype="2" target="_self">Zero-Turn Series</a> consists of three self-propelled, mid chassis scissor lifts. Designed to compete with 12 ft mast lifts, these scissors offer innovative point-and-go zero-turn radius steering, as well as proportional lift and drive systems. A large work platform with a 30 in EZ-Glide slide out extension deck, built-in tool tray, and maintenance-free AGM batteries complete these lifts.</p> <p><a href="/ansi/Scissor-Lifts/ProSeries.htm" linktype="2" target="_self">Pro Series</a> scissor lifts are self-propelled, large chassis work platforms with <a href="/ansi/GoHyer/2021/Scissor-Lift-Platform-Capacities-by-Brand.htm" linktype="2" target="_self">unparalleled lifting capacities</a>. These slab scissors also include a proportional drive system, a 30 in EZ-Glide slide out extension deck, a built-in tool tray, and counter rotating wheels that prevent floor surface damage.</p>Hy-Brid Lifts: A History of InnovationFrom casket lifts to low-level scissor lifts, Hy-Brid Lifts has a history of building safe, heavy-duty products for customers around the world.LanguageParts_Component_TypeParts_Model_NumberProduct_CertificationsProduct_FAQ_Lookup_IDsProduct_Lookup_KeyProduct_MobilityProduct_Serial_Number_RangeProduct_Specification_CategoryProduct_StatusProduct_Working_Height_FeetProduct_Working_Height_MetersRegionRelated_ProductsVideo_Lookup_KeyHy-Brid-Lifts-by-Custom-EquipmentCertificationLanguage TagsModel NumberProduct SeriesVideo CategoriesCompany InfoFamiliarizationLanguageenParts_Component_TypeParts_Model_NumberProduct_CertificationsANSIProduct_FAQ_Lookup_IDsProduct_Lookup_KeyHB-830-enProduct_MobilityZero-Turn Scissor LiftProduct_Serial_Number_RangeProduct_Specification_CategoryProduct_StatusPast ModelProduct_Working_Height_Feet14 ftProduct_Working_Height_Meters4.3 mRegionNorth AmericaRelated_ProductsVideo_Lookup_KeyHy-Brid-Lifts-by-Custom-EquipmentCategoriesCertificationLanguage TagsModel NumberProduct Series02021-06-30T11:24:31.95000

For additional resources, visit our library.
