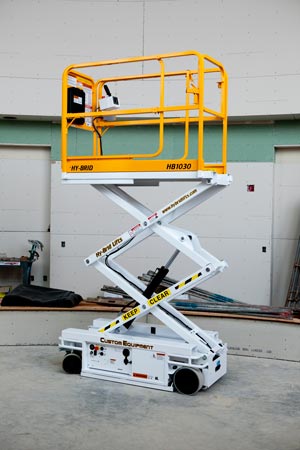

HB-1030

Self-Propelled Scissor Lift

The Hy-Brid Lifts HB-1030 electric scissor lift has a high lifting capacity, low step-in height, and lightweight design, making this lift the ideal choice for a variety of applications. Learn more about the changes to our next generation Pro Series scissor lifts!



View Current Model

  • HB-1030
  • Hy-Brid HB-1030
  • HB-1430 HB-1030 General Safety
  • HB-1430 Trailer Loading
  • Hb-1430 Overview
  • Hy-Brid Lifts by Custom Equipment

Key Features

  • Working height up to 16 ft
  • Platform capacity up to 750 lbs
  • Weighs under 1,300 lbs
  • Low floor load pressures
  • Slide out extension deck w/ slip-resistant surface
  • Non-marking wheels
  • 1-year parts & labor warranty
  • 5-year structural warranty

Options

  • Power-to-platform
Maximum Wheel Load99.3 psi684.8 kPa
Minimum Wheel Load62.7 psi432.5 kPa
Ground Clearance Lowered2 in5.1 cm
Ground Clearance Raised0.4 in1 cm
Platform Height Max (indoors)10 ft3 m
Platform Height Min21 in0.53 m
Working Height (indoors)16 ft4.9 m
Overall Length63.5 in1.61 m
Overall Width30 in0.76 m
Platform Extension30 in0.76 m
Platform Length60 in1.52 m
Platform Width25 in0.64 m
Stowed Height65.63 in1.67 m
Extension Capacity250 lbs113.4 kg
Inside Turning Radius21 in0.53 m
Lift Speed Up/Down15/22 sec15/22 sec
Platform Capacity750 lbs340.2 kg
Rated Occupancy2 Person(s)2 Person(s)
Weight1273 lbs577.4 kg
