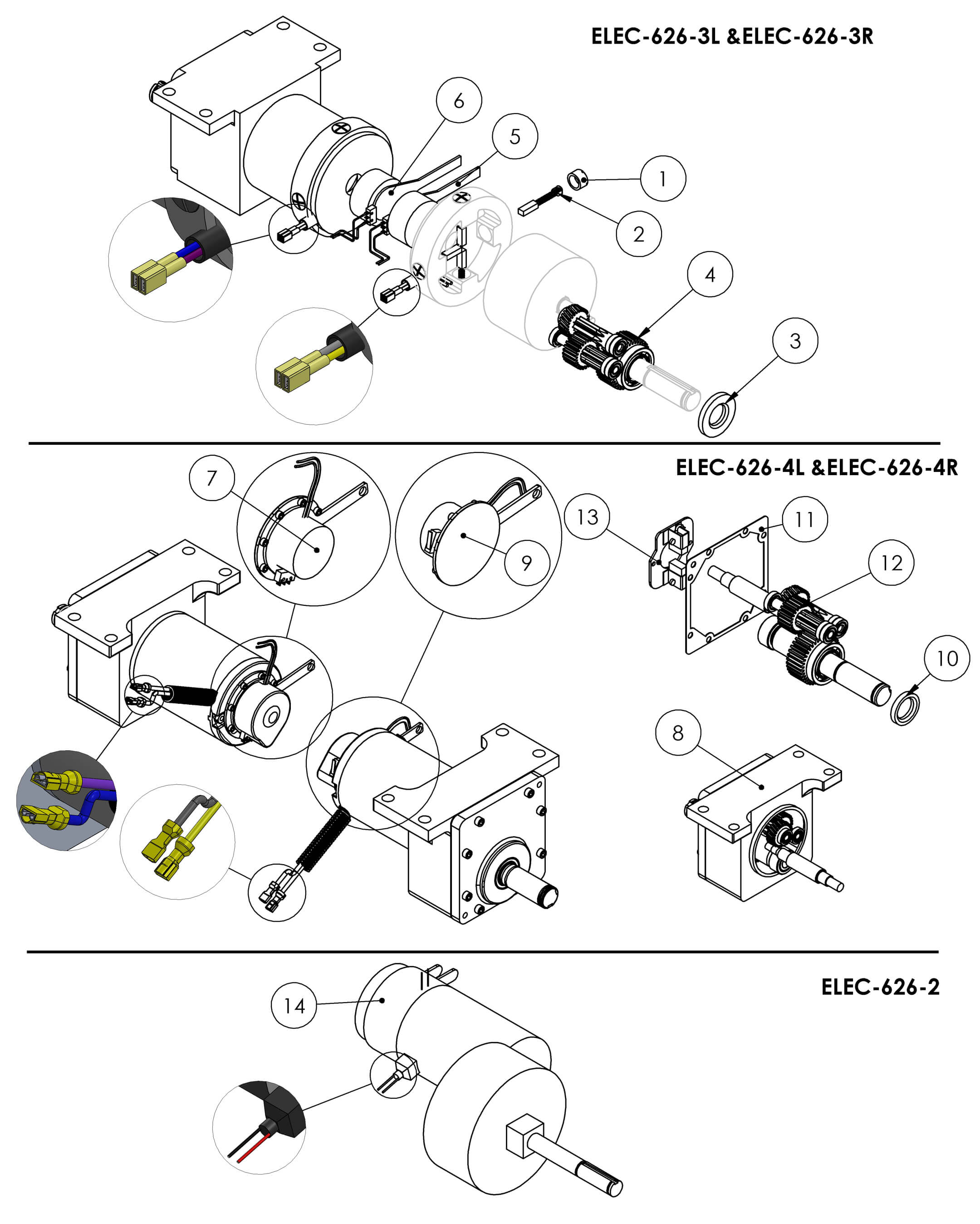

HB-1030 Base-Drive Subparts SN: C52000 C53999

Number	Part Number	Part Description	UOM	Quantity
1	ELEC-626-BRSHCP	DRIVE MOTOR BRUSH CAP	EA	1
C52000-C53999; EUCLID: HOUSING WITH BLACK STRIP
2	ELEC-626-BRUSH	DRIVE MOTOR BRUSHES	SET	1
C52000-C53999; EUCLID: HOUSING WITH BLACK STRIP
3	ELEC-626-3A	DRIVE MOTOR SHAFT SEAL,EUC	EA	1
C52000-C53999; EUCLID: HOUSING WITH BLACK STRIP
4	ELEC-626-G	DRIVE MOTOR GEARS,HB,EUC	EA	1
C52000-C53999; EUCLID: HOUSING WITH BLACK STRIP
5	ELEC-627-3L	DRIVE MOTOR BRAKE L,HB,EUC	EA	1
C52000-C53999; DUMORE: HOUSING ALL SILVER; Applicable if drives replaced
6	ELEC-627-3R	DRIVE MOTOR BRAKE R,HB,EUC	EA	1
C52000-C53999; EUCLID: HOUSING WITH BLACK STRIP
7	ELEC-627-5R	DRIVE MOTOR BRAKE R,HB,DUM	EA	1
C52000-C53999; DUMORE: HOUSING ALL SILVER; Applicable if drives replaced
8	ELEC-626-4C	DRIVE MOTOR GEARBOX,DUM	EA	1
C52000-C53999; DUMORE: HOUSING ALL SILVER
9	ELEC-627-5L	DRIVE MOTOR BRAKE L,HB,DUM	EA	1
C52000-C53999; DUMORE: HOUSING ALL SILVER; Applicable if drives replaced
10	ELEC-626-4A	DRIVE MOTOR SHAFT SEAL,DUM	EA	1
C52000-C53999; DUMORE: HOUSING ALL SILVER
11	ELEC-626-4B	DRIVE MOTOR HOUSING GASKET,DUM	EA	1
C52000-C53999; DUMORE: HOUSING ALL SILVER
12	ELEC-626-4G	DRIVE MOTOR GEARS,HB,DUM	EA	1
C52000-C53999; DUMORE: HOUSING ALL SILVER
13	ELEC-626-4BRUSH	BRUSH KIT,DUMORE	EA	1
C52000-C53999; DUMORE: HOUSING ALL SILVER
