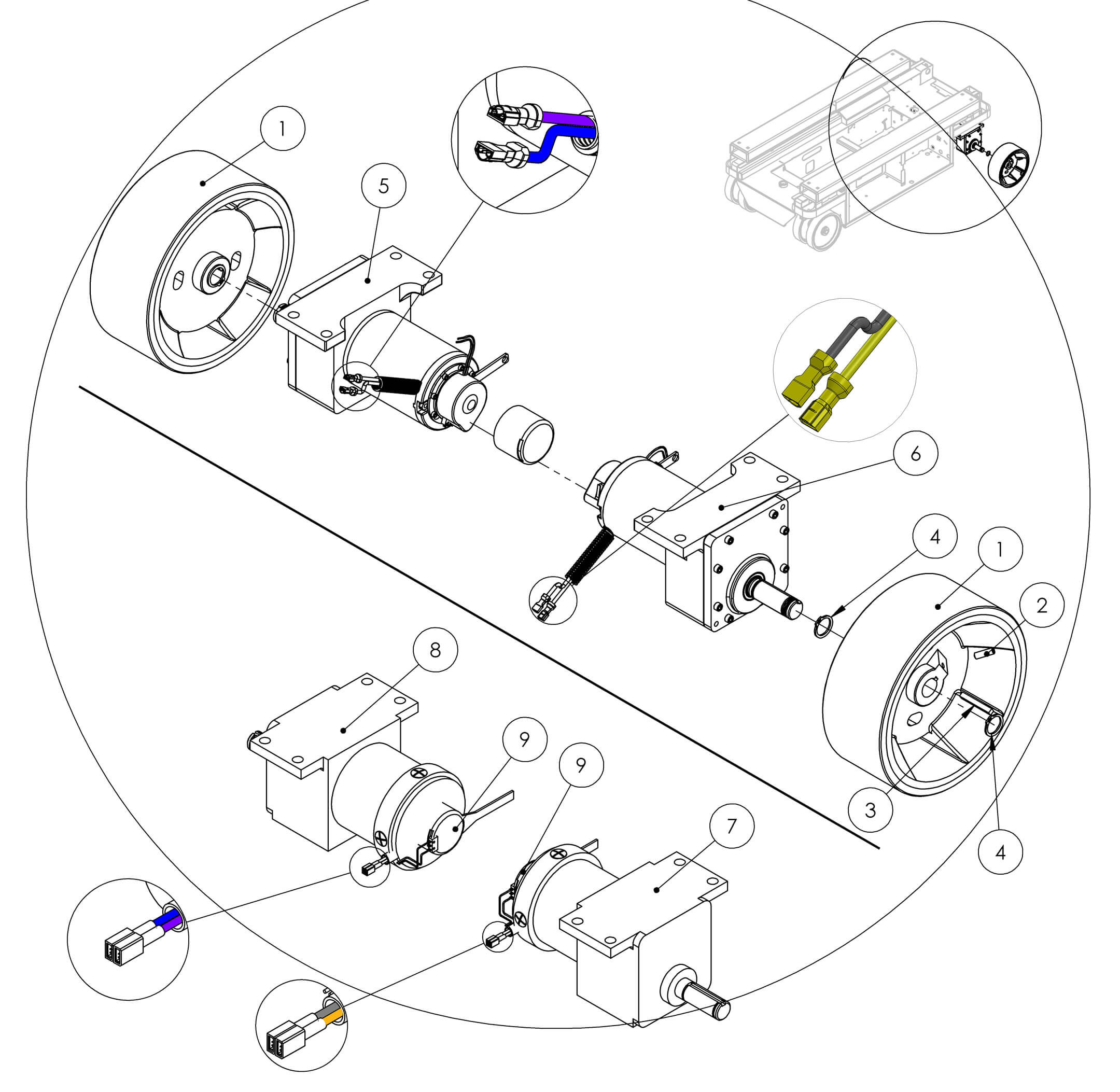

HB-1030 Base-Drive Parts SN: D110000 D110005

Number	Part Number	Part Description	Superseded To	UOM	Quantity
1	WHEE-600-1	WHL,10X4 GREY UR KW 1.0		EA	2
D110000-D110005
2	SCREW-2011	5/16-18 X 1 SS CUP PT SET SCRW		EA	2
D110000-D110005
3	HARD-157	KEY,0.25 X 0.25 X 2		EA	2
D110000-D110005
4	HARD-021	RET RING 1.0		EA	4
D110000-D110005
5	ELEC-626-4R-KIT	DRIVE MOTOR,24V ELEC,HB,DUM,R		EA	1
D110000-D110005; BLUE/VIOLET LEADS; PRIMARILY ON D01-10114 TO D01-19999, UNLESS DRIVES REPLACED
6	ELEC-626-4L-KIT	DRIVE MOTOR,24V ELEC,HB,DUM,L		EA	1
D110000-D110005; GREY/YEL LEADS; PRIMARILY ON D01-10114 TO D01-19999, UNLESS DRIVES REPLACED
7	ELEC-626-3L-KIT	DRIVE MOTOR,24V ELE,HB,EUC,L	ELEC-626-4L-KIT	EA	0
D110000-D110005; GREY/YEL LEADS; PRIMARILY ON D01-10002 TO D01-10212, UNLESS DRIVES REPLACED--Superseded
8	ELEC-626-3R-KIT	DRIVE MOTOR,24V ELE,HB,EUC,R	ELEC-626-4R-KIT	EA	0
D110000-D110005; BLUE/VIOLET LEADS; PRIMARILY ON D01-10002 TO D01-10212, UNLESS DRIVES REPLACED--Superseded
9	ELEC-627-COVER	COVER,VINYL		EA	2
D110000-D110005
